Model#DAC-NXC-07

Technical Info:>

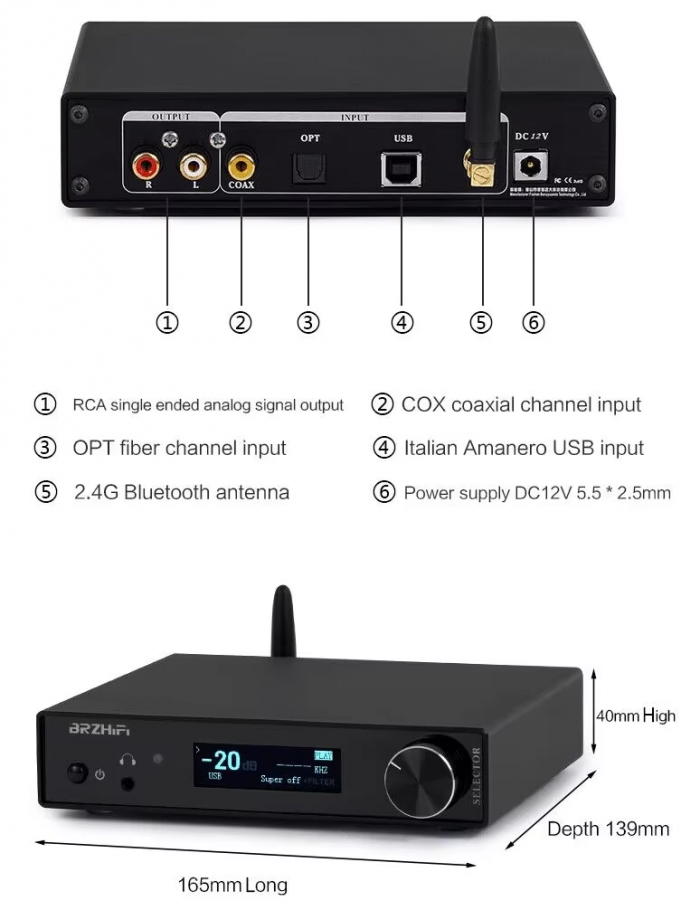

Output Interface: 2.0 stereo interface/RCA Interface/3.5mm headphone output
Lamp Output: 141mW*2(PO=HI, RL=600 Ohms THD+N=1%O
256mW*2(PO=HI, RL=300 Ohms THD+N=1%)
747mW*2(PO=HI, RL=32 Ohms THD+N=1%)

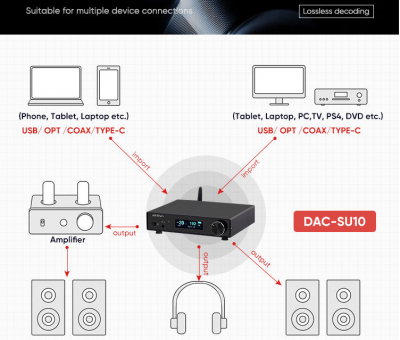

Digital Input: USB/mobile OTG/BT/Coaxial/OPT Fiber
USB Input: PCM:44.1KHz-384KHz/16-32Bit DSD64-DSD256/DOP/Native
Coaxial/Optical Fiber: PCM 44.1KHz-192KHz/16-24 bit
BT Warless Input: BT5.0, Support APT-X/APYX-HD
SNR:128dB@1KHz
THD+N: <0.0005% @ 1KHz & <0.0006% @ 20-20KHz
Receive Audio: USB/ Mobile OTG/BT5.0/Coaxial/Optical Fiber
SNR: 128dB @ 1KHz
Frequency Response:16hHz-20KHz
Headphone Output Power: 700mW*2
Product Size: 150*44*169mm
Weight: 1.5KG with packing.

Product images
