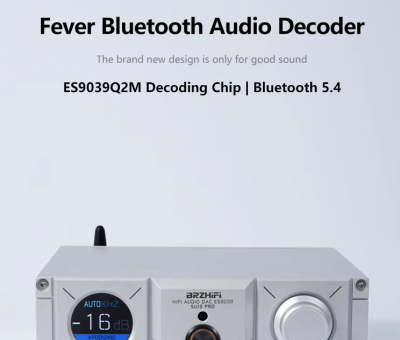

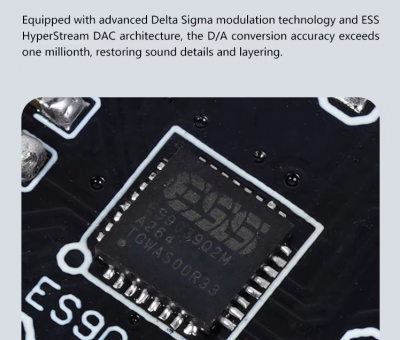

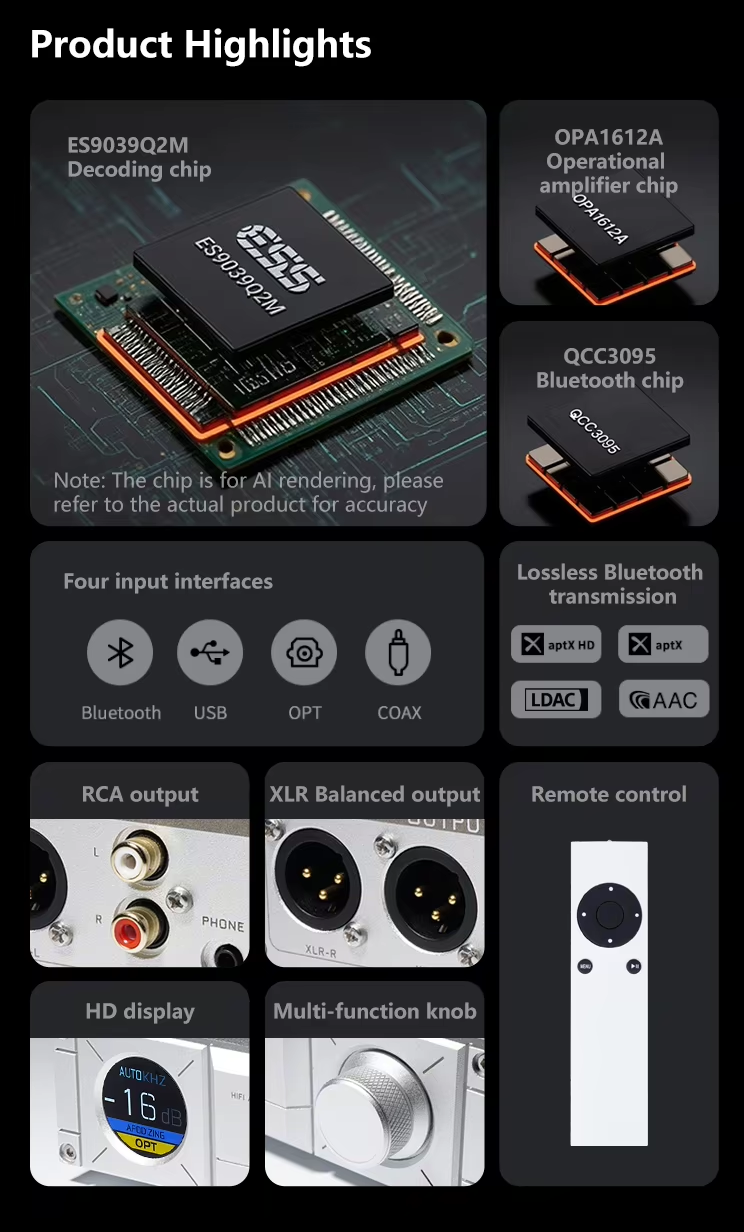

CHIPSET: ES9039Q2M+QCC3095+OPA1612*2

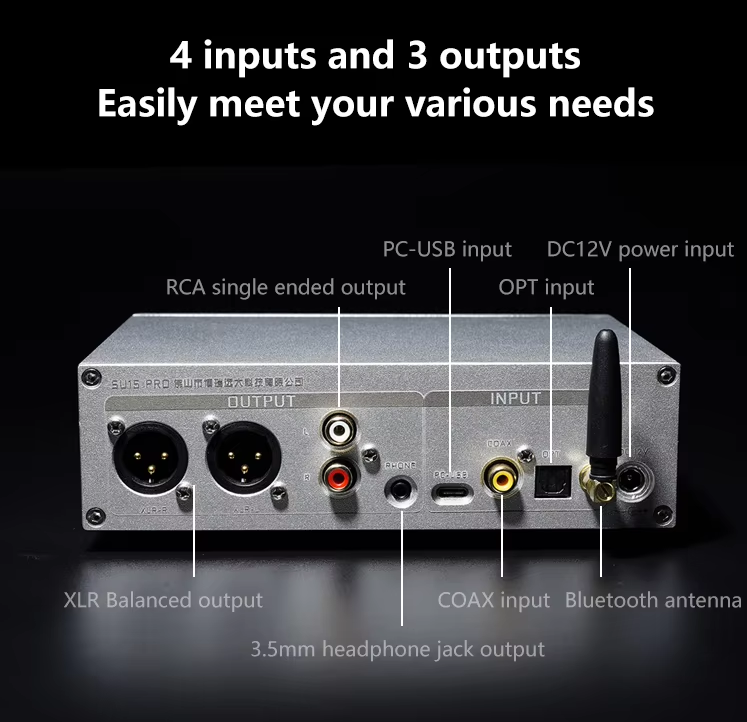

INPUT: BT, Fiber optic, coaxial, USB flash drive

OUTPUT: RCA，COAX

SIGNAL TO NOISE RATIO: ≥120dB

Distortion rate:0.0005%

FREQUENCY RESPONSE: 20hz-20khz

BT VERSION: 5.4

Bluetooth Protocol: AAC/SBC/APTX/APTX-LL/APTX-HD/APTX-Adaptive/LDAC

USB CAPACITY: Maximum support for 128GB

SUPPORT FORMAT: WMA/MP3/WAV/APE/FLAC other lossless music formats

FIBER/COAXIAL INPUT SAMPLING RATE: 44.1K~192K 16~24BIT

COAXIAL OUTPUT SAMPLING RATE: 44.1khz 16Bit

USB SAMPLING RATE: PCM 44.1K~384K16~32BIT DSD64-DSD128

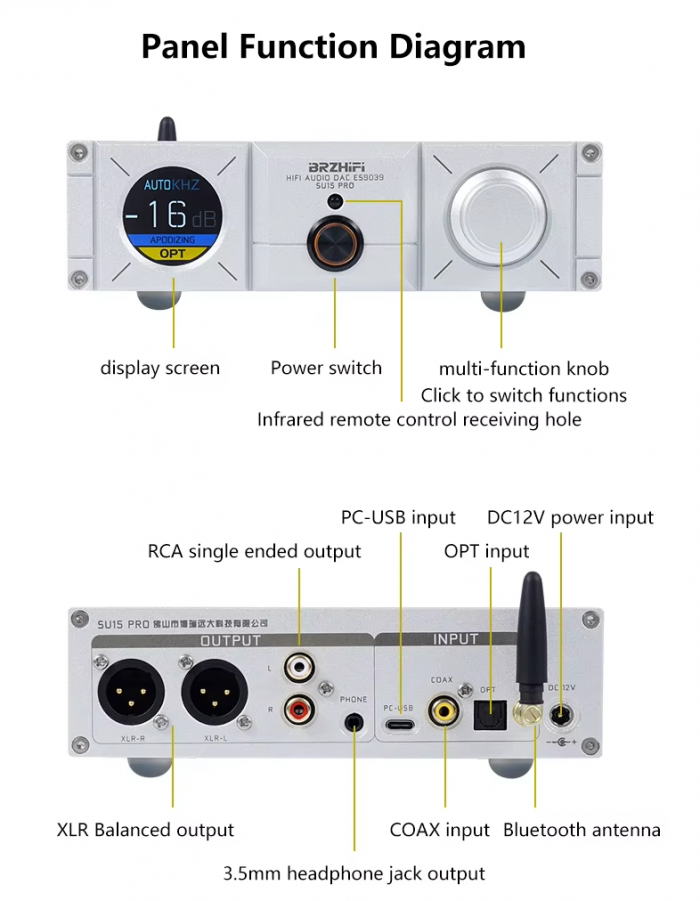

Output method: XLR balanced, RCA Lotus, 3.5 headphone jack output

OUTPUT LEVEL: 2V@1kHz

BT DISTANCE: ≥13m

WORKING POWER SUPPLY: DC 12V 2A

PRODUCT SIZE: 131x107x4l mm

Package  Weight: 1.5KG
