Model# SMSL DL200

Technical Details:

Support MQA decoding, support MQA-CD;

ESS new generation high-end digital-to-analog chip ES9039Q2M;

Qualcomm latest Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD, SBC, AAC;

4x high-end dual op amp OPA1612 and a large number of audio grade components;

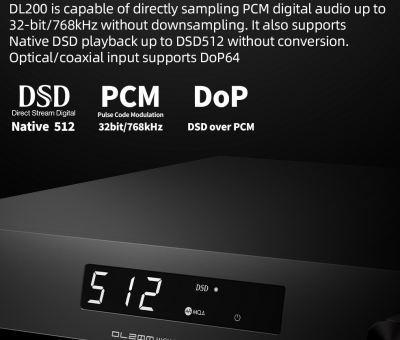

New third generation XMOS XU-316 with PCM support up to 32bit/768kHz and DSD support up to DSD512;

Audio clock processing circuit, greatly reducing the clock jitter;

Input ports (except Bluetooth) support DSD and MQA transmission, coaxial and optical supports DoP64;

Built-in specially designed low-noise switching power supply;

Built-in self-developed low-noise SMPS and multiple low-noise power supplies for analog circuits;

High-quality gold-plated input and output connection terminals;

Japan Audio Association (JAS) Hi-Res certification;

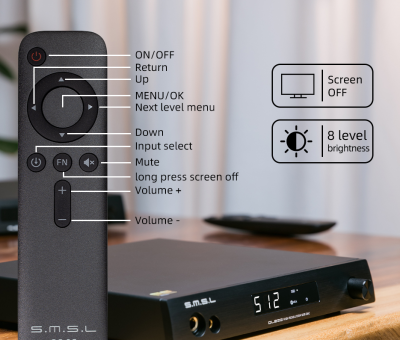

Equipped with full-function remote control.

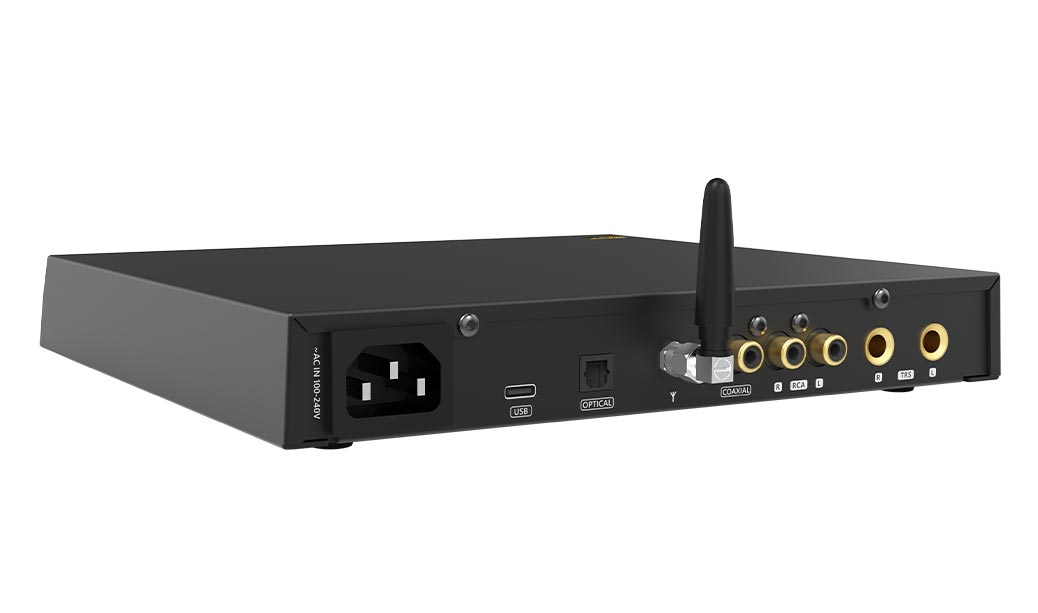

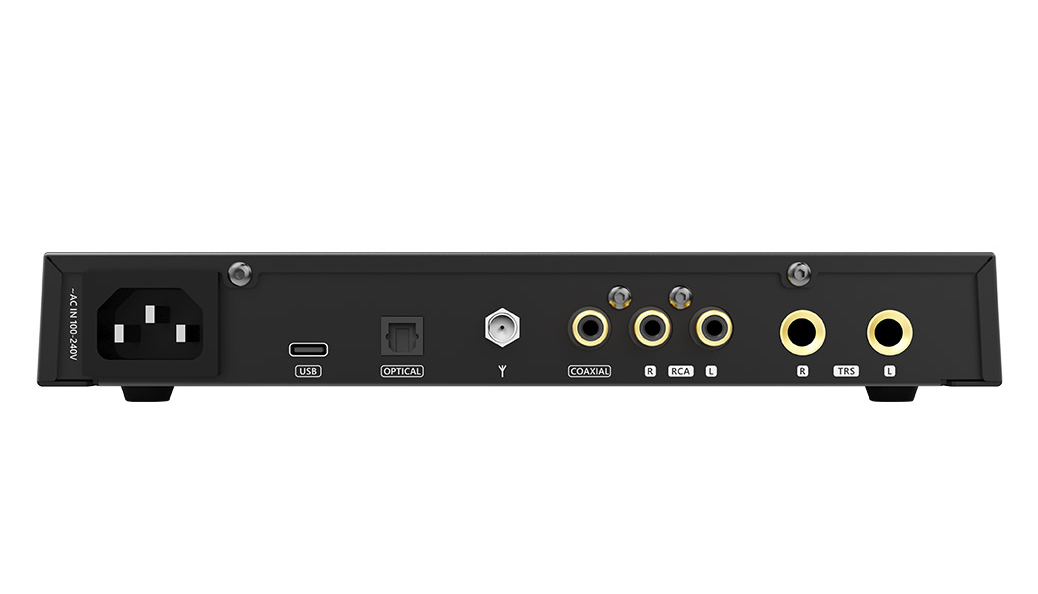

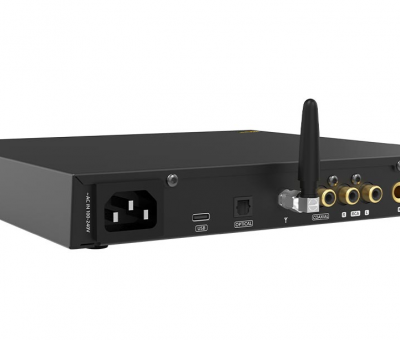

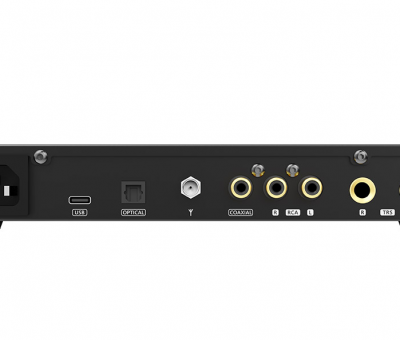

Inputs: USB/Bluetooth/Optical/Coaxial
Output: 6.35mm/4.4mm/TRS/RCA

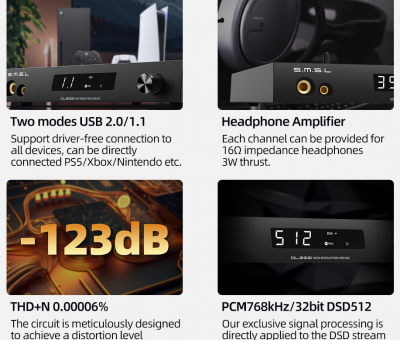

Headphone Output Power: 16Ω 3WX2, 32Ω 1.5WX2
THD+N: 0.00006%
SNR: RCA 127dB/XLR 130dB

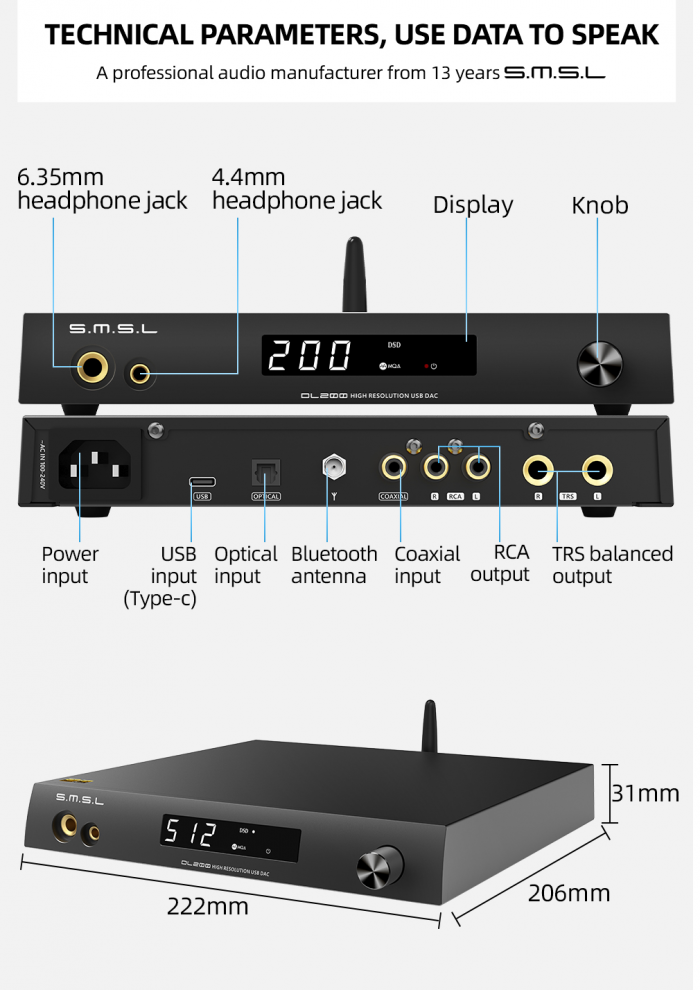

Dimension: 221X31X206mm
Weight: 1.39KG


Price: BDT-28,000.00
