Feature Packed
Hi-Res Bluetooth Codecs
Equipped with the Qualcomm QCC3031 Bluetooth chip, supporting aptX HD, aptx LL, aptX, AAC, and SBC codecs.

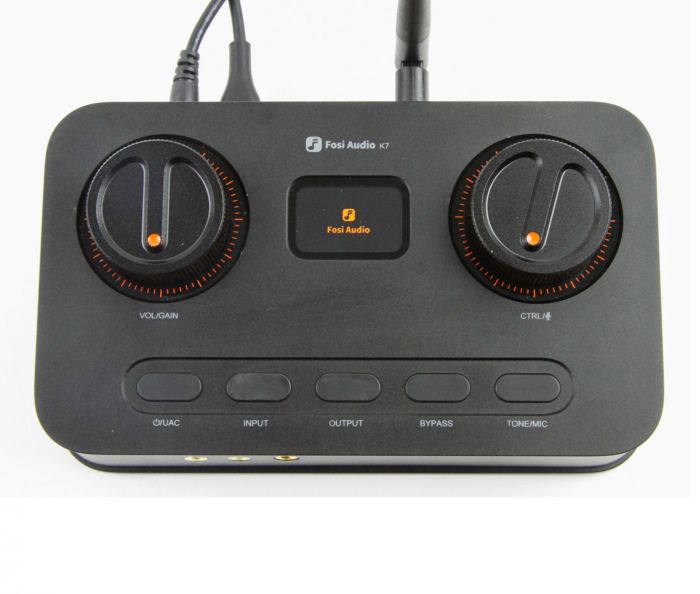

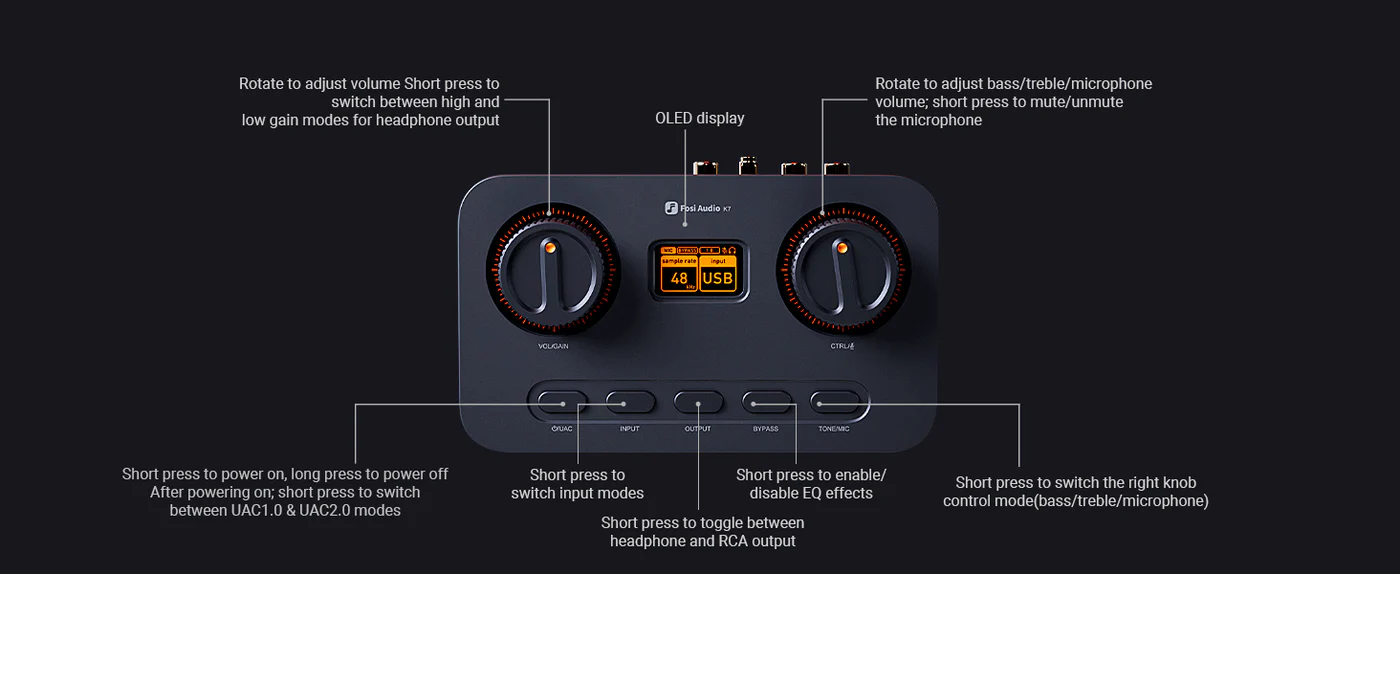

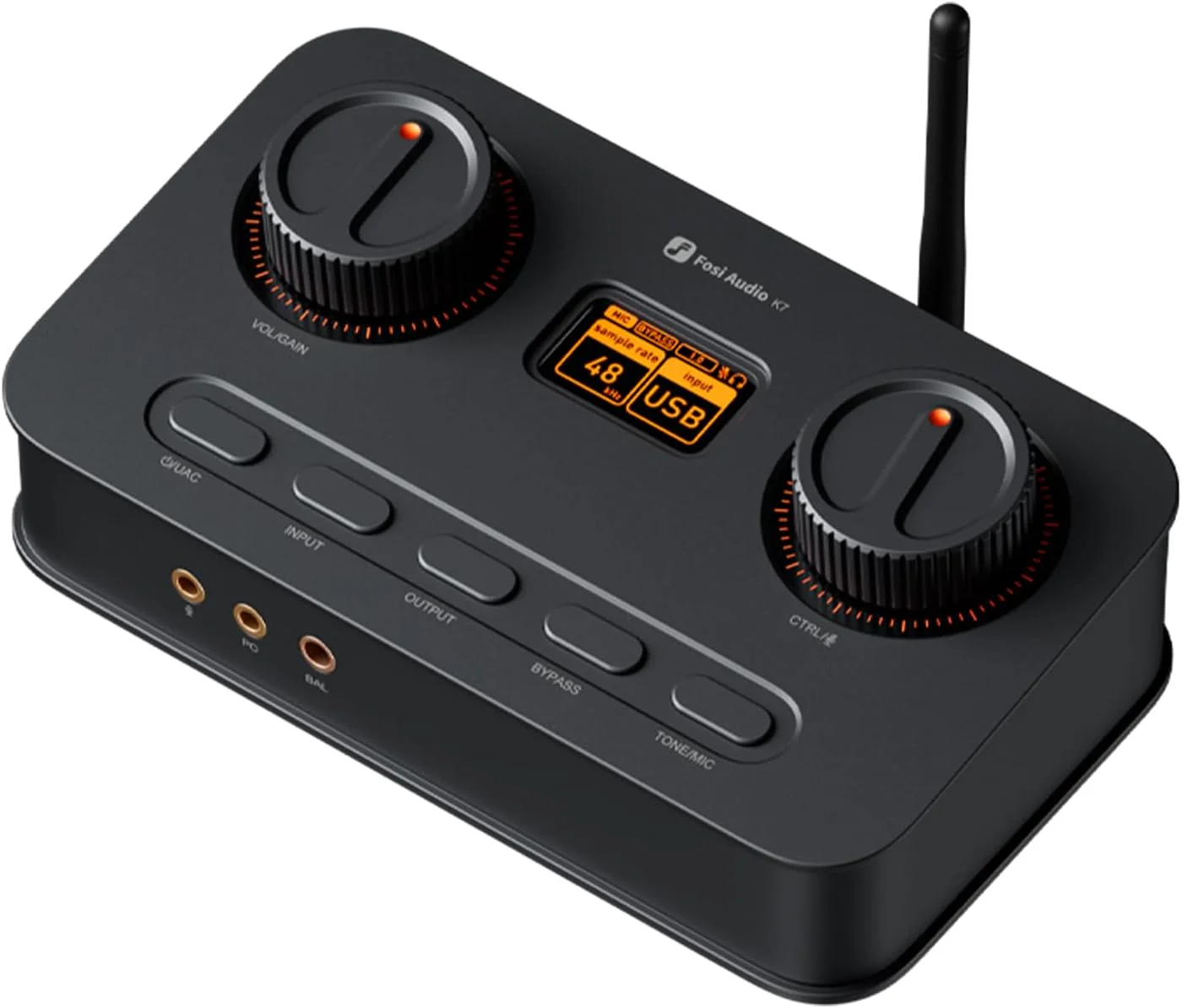

User-Friendly and Practical Control Design
The K7 features a 1.5″ LCD high definition display for easy viewing. It is integrated with tactile shortcut buttons, multi-functional press-able knobs, and sits at an angled ergonomic design.
Aluminum Alloy Body with CNC Design
A compact and exquisite full-metal chassis with fine sandblasting for a robust and durable design.
Triple Intelligent Protection
The K7 promises uninterrupted gaming and entertainment with built-in overhear protection, overload protection, and overcurrent protection.

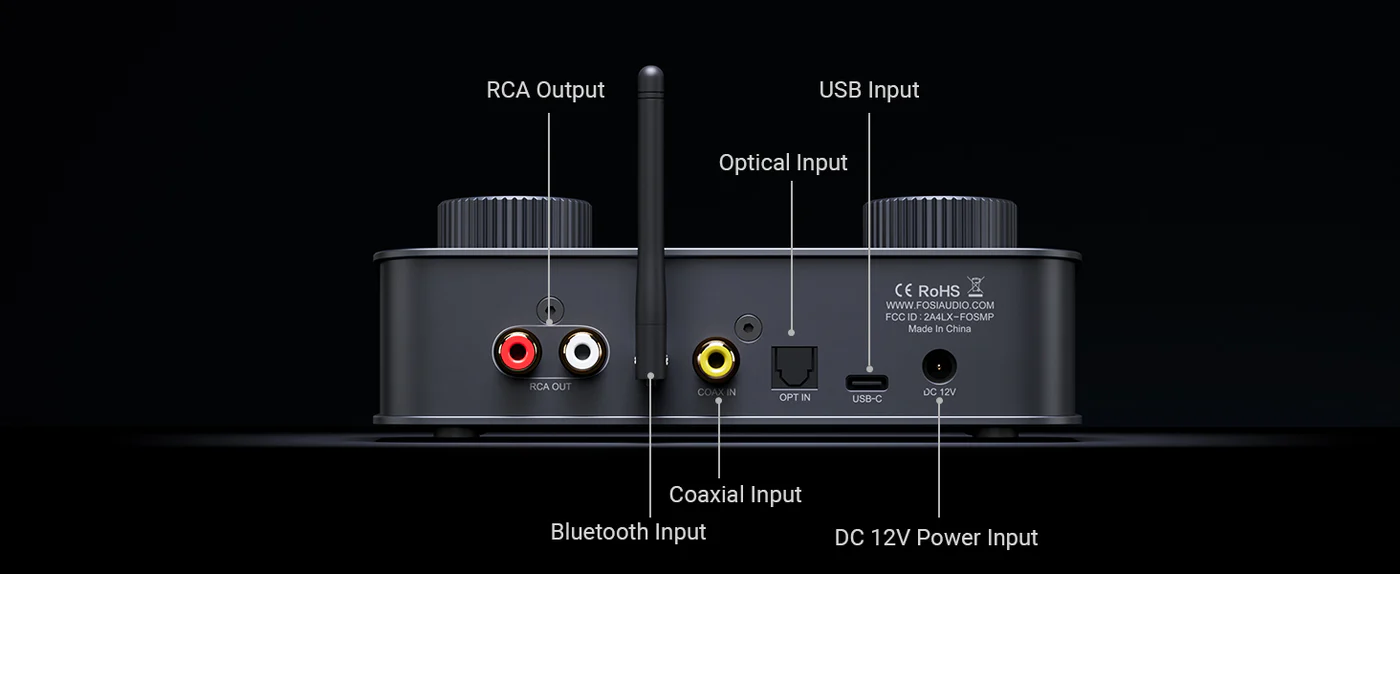

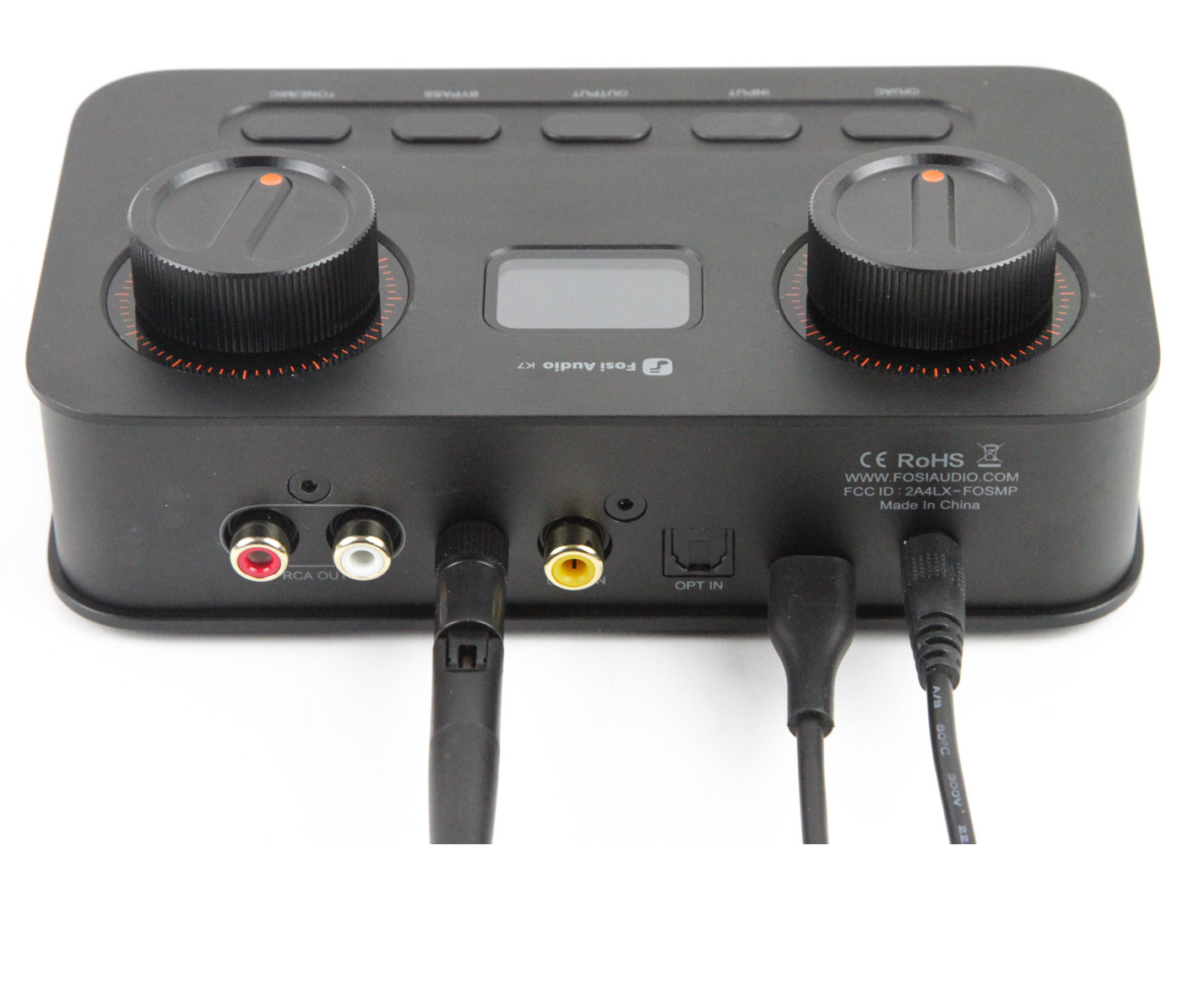

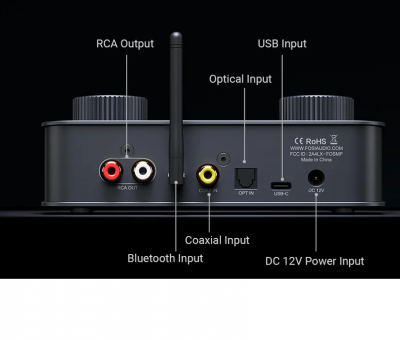

Comprehensive Connectivity
Supports USB-C, coaxial, optical, Bluetooth aptX HD/LL, and 3.5mm microphone input. Outputs include 4.4mm BAL, 3.5mm SE, and RCA, easily connecting to headphones, powered speakers or amplifiers for desktop setups.
Fully Balanced Circuitry, 0.0002% Low Distortion
Effectively reduces noise and interference, equipped with gain control and headphone protection circuits to ensure clear, authentic audio output.
Multiple LDO Regulators
Each stage utilizes low-noise LDO regulators for pure power output, enhancing audio performance with robust power support.
Specifications
- Chipset:
- XMOS XU208
- AKM4493SEQ
- QCC 3031
- TPA6120
- Maximum Sampling Rate:
- USB:PCM 384kHz-32bit/DSD256
- Optical: PCM 24bit/192kHz
- Coaxial: PCM 24bit/192kHz
- Bluetooth:PCM 24bit/48kHz
- Headphone lmpedance: 16-300Ω
- Input: Coaxial, Optical, USB-C, Bluetooth, 3.5mm Microphone
- Output: RCA, 3.5mm Single-Ended, 4.4mm Balanced
- Firmware Upgrade: XMOS firmware can be updated via the Type-C interface
- Bluetooth Version: 5.0
- Bluetooth Connection Distance: ≤13m
- Noise Floor: ≤2.5μV
- Bluetooth Transmission Audio Format: SBC, AAC, aptX, aptX HD, aptX LL
- Input Voltage and Current: DC 12V 2A
- USB Compatible Devices: Windows 7,8, 8.1,10,11 (Driver required) Mac OS X, Linux (No driver required)
- Dimensions: 155mm x 95mm x 55mm
- Weight: 530g
4.4mm Balanced Headphone Output
- Rated Power Output: L+R≥2100mW+2100mW (32Ω/THD+N＜1%)
- SNR: 121dB
- THD+N: <0.0002%
- Dynamic Range: 121dB
- Noise Floor: ≤ 6.5μV
3.5mm Single-Ended Headphone Output
- Rated Power Output: L+ R≥600mW+600mW (32Ω/THD+N<1%)
- SNR: 122dB
- THD+N: 0.0005%
- Dynamic Range: 121dB
- Noise Floor: ≤2.5μV
- Frequency Response: 20Hz-20kHz (±0.1dB)
RCA Output
- Output Level: ≥2Vrms
- SNR: 20Hz-20kHz (±0.1dB)
- THD+N: 0.0005%
- Dynamic Range: 121dB
- Noise Floor: ≤3μV
- Frequency Response: 20Hz-20kHz
Price: BDT-27,500.00
