Master Your Speaker Setup

The G7 was engineered to meet audiophiles’ need for flexible speaker output, building a simplified yet powerful audio system. Paired with Post-Filter Feedback (PFFB) technology, eliminates load dependency, enhancing performance and sound quality significantly

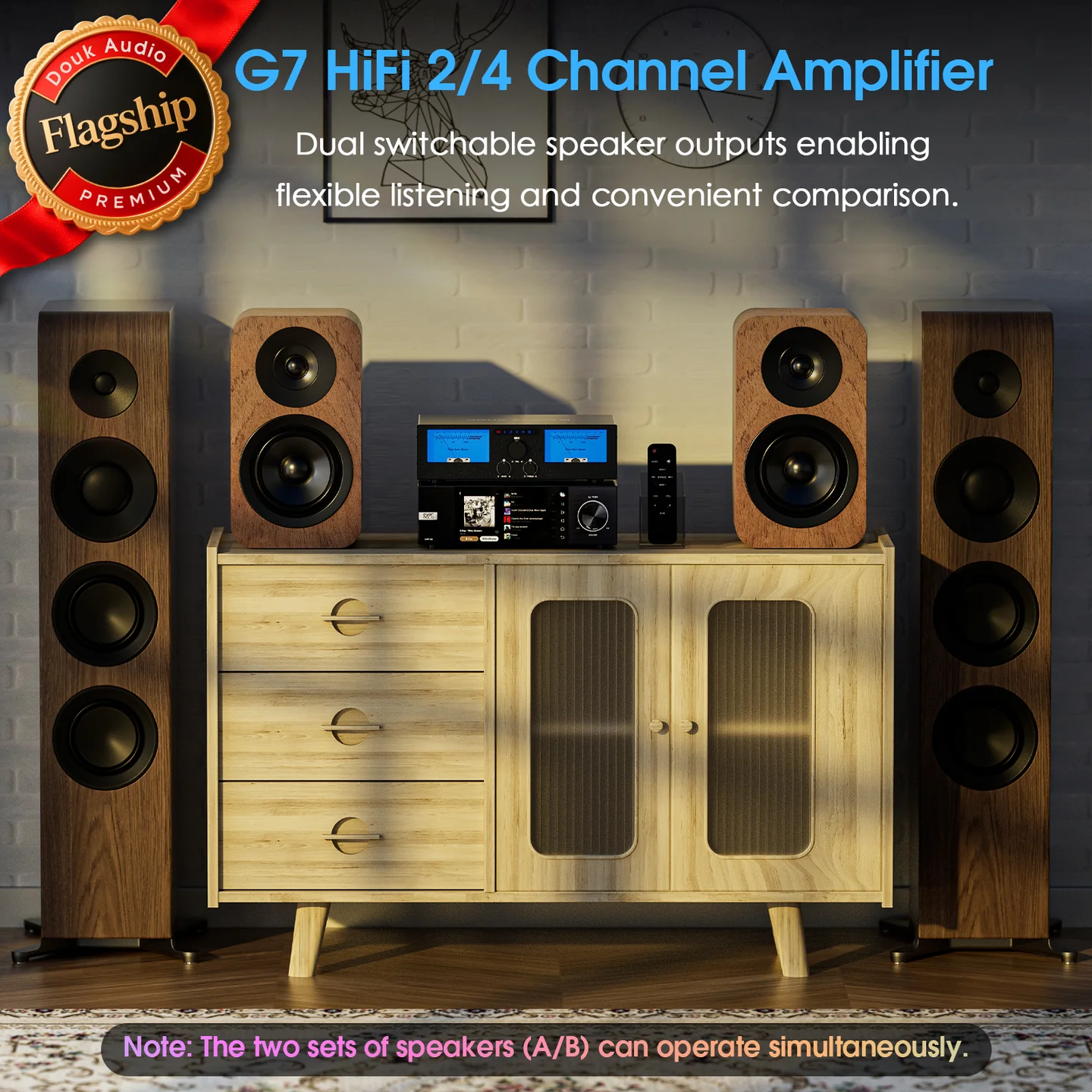

• 2/4 Channel Outputs for Flexible Listening: With 2 sets of switchable or simultaneous speaker outputs for A/B testing or dual-zone setups. Perfect speaker selector/switcher for bookshelf and floor-standing speakers in any audio setup.

• Versatile Inputs for Seamless Integration: Balanced XLR+TRS combo and dual RCA inputs ensure clean, noise-free audio with pro-grade compatibility, making it the best match for high-performance DACs and streamers like the Eversolo players.

• Flagship Chipset for Optimal Performance: Equipped with 2PCS TPA3255 chips delivering up to 300W×2 or 150W×4 output, paired with an internal 48V/10A GaN power module, NJW1194 IC, and OPA1612 op-amps. Enhanced by PFFB technology, which eliminates load dependency, further enhancing performance and sound quality.

• Tone Control & Pure Bypass Mode: Enjoy ±10dB of bass and treble shaping, also engaging the Bypass Mode disables the tone and volume circuits. Enjoy the ultimate flexibility of an integrated amp or the uncolored, original signal path of a pure power amp for critical listening.

• Iconic VU Meters & Smart Control: The large, retro blue VU meters with AGC provide captivating, real-time visual feedback. Modern convenience is built-in with 12V trigger for synced power, full-function remote, instant mute, creating a fully immersive HiFi audio system.

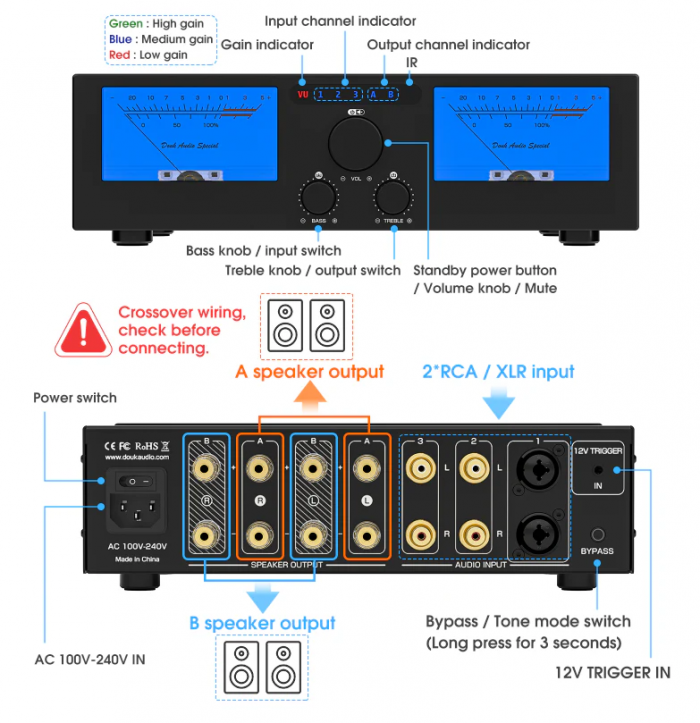

• Audio input: 2 groups of RCA/TRS+XLR combo input
• Audio output: 2 groups of Banana speaker jacks
• Amplifier chips: 2×TPA3255
• Number of channels: Selectable 2-channel / 4-channel
• Max. output power: 300W*2@4Ω (2-channel output); 150W*4@4Ω+4Ω (4-channel output)
• Built-in power supply: DC 48V/10A
• Op-amp chips: 3×OPA1612
• Frequency response: 20Hz-20kHz (±0.5dB)
• THD+N: 0.002%
• SNR: ≥112dB
• Input sensitivity: RCA: 2V; TRS+XLR: 4V
• Matched speaker impedance: 4-8Ω
• Treble/bass range: ±10dB
• VU Meter Dimensions: 85*45.4mm / 3.34*1.79in
• Mute function: Supported
• Bypass function: Supported
