Product model: Aiyima–D05
Color: Black
Chips set: CM6642, TAS5508, TAS5352A, QCC3031, CS8422, WM8782
Working Voltage: DC 24-36V, can’t over 36V ( package includes 32V 5A power adapter)
Input sensitivity: 0.775V
Frequency response: 20Hz-20kHz (±1dB)
SNR(Singal noise rate): ≥105dB
Total harmonic distortion: 0.001% (1kHz1w)
Bluetooth distortion rate: 0.01%
Bluetooth Version: 5.0 (QCC3031)
Bluetooth support: ACC.SBC.aptX.aptX LL
Speaker match resistance: 4-8Ohm
Amplifier max output power: 120W+120W, load 4Ohm speaker
PC-USB Support max sample rate: PCM 192kHz/24Bit
Coaxial Support max sample rate: PCM 192kHz/24Bit
Optical Support max sample rate: 192kHz/24Bit
PC-USB support system: XP, W7, W10, mac, Linux, mobile phone OTG

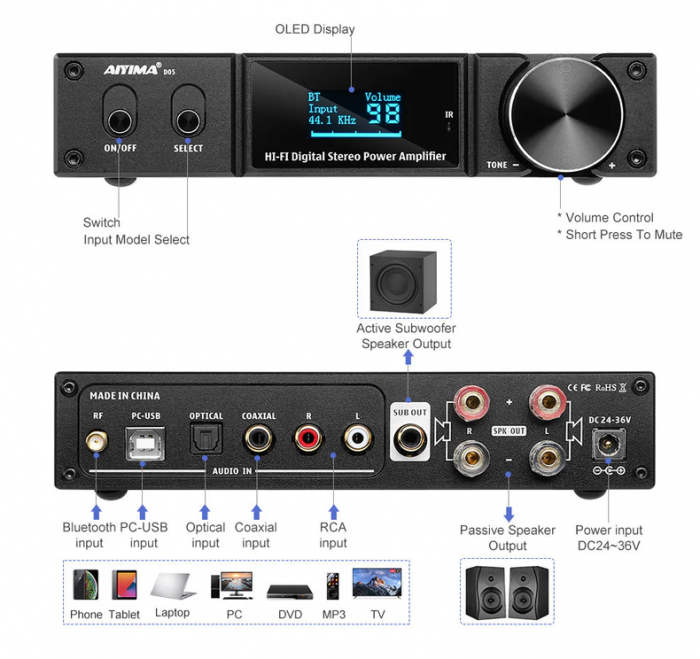

Audio input: Bluetooth, PC-USB, Optical, Coaxial, RCA
Audio output: Banana Jack, Golden subwoofer output (connect with active subwoofer speaker)

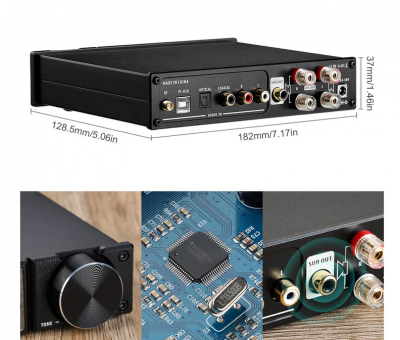

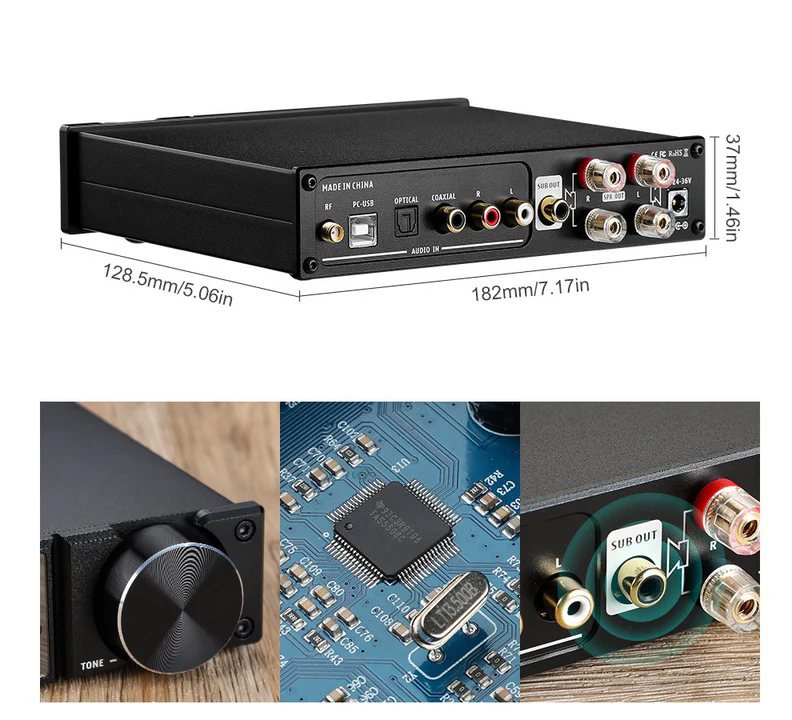

Product size: 183*128.5*37mm
Package weight: 1.5kg.

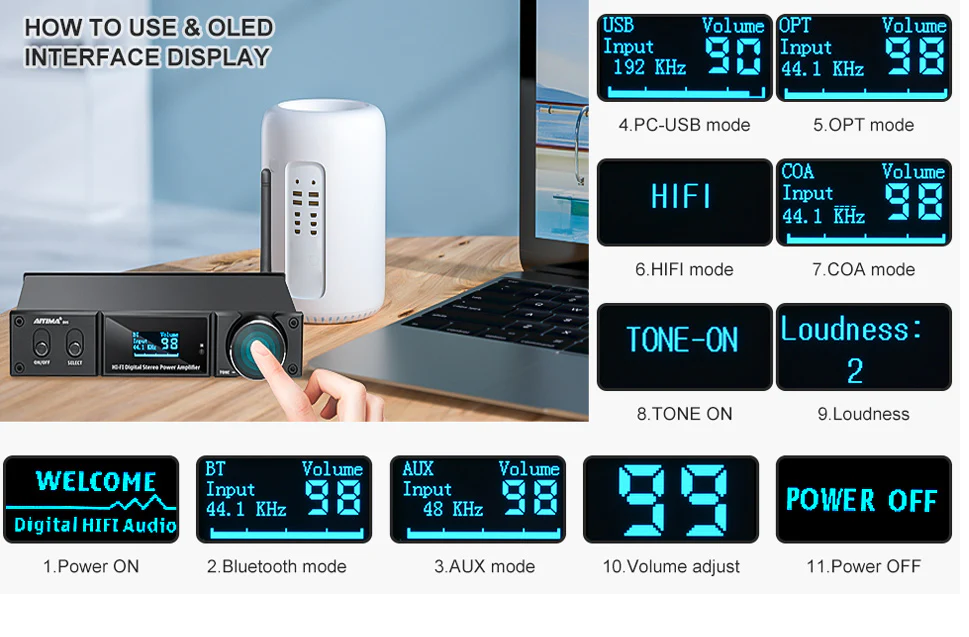

Operation Steps:

1. Connect speakers to SPK OUT interface
2. Connect the sound source to the sound source input interface
3. Connect power supply (power supply should not exceed)

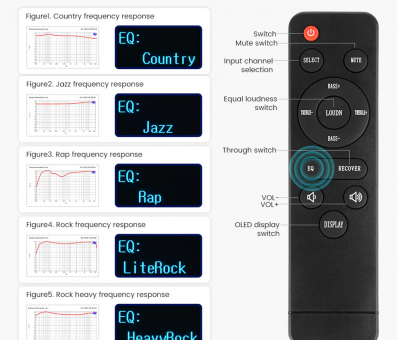

4. Press machine ON/OFF or remote control to start the machine
5. Press the machine input channel selection key or the remote control to select the input channel
6. When using bluetooth input, the input channel needs to be set to BT

Instructions for PC-USB operation:

1. Connect the PC-USB interface of the rear surface of the machine with factory provided USB cable (USB can support hot plug)
2. Press the input signal selection switch to select USB input.
3. The following photo shows the icon with horn symbol in the lower right corner of PC
4. Click right button to pop up the dialog window and click
5. Select the playback device recognized by PC in the pop-up dialog window (USB of this machine is automatic identification, no manual installation and drive).
6. Click to confirm the identified digital output.
