Specifications:

Product type: Class D amplifier

Channels: Stereo

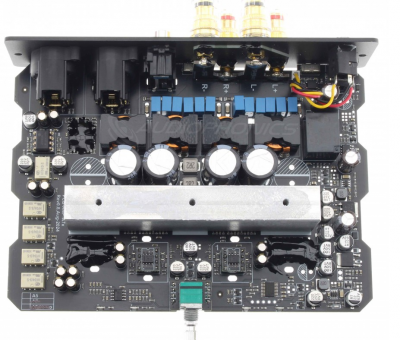

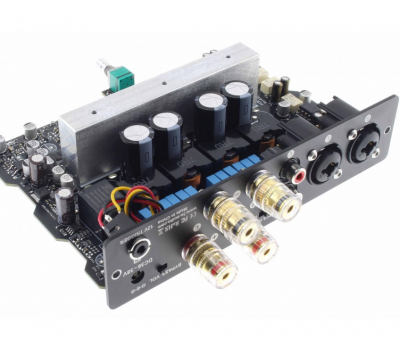

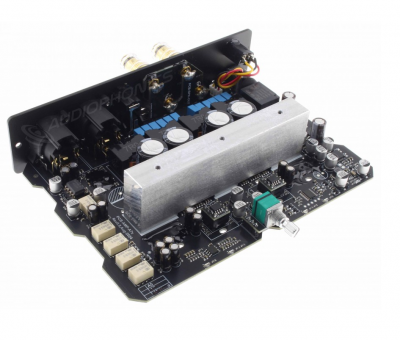

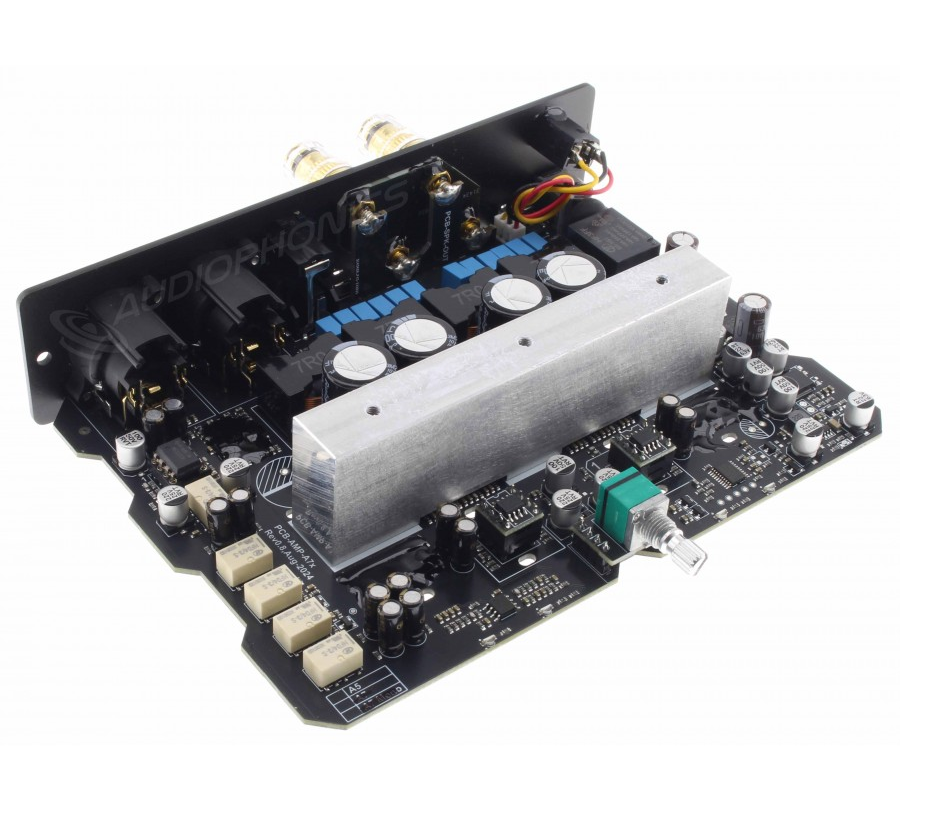

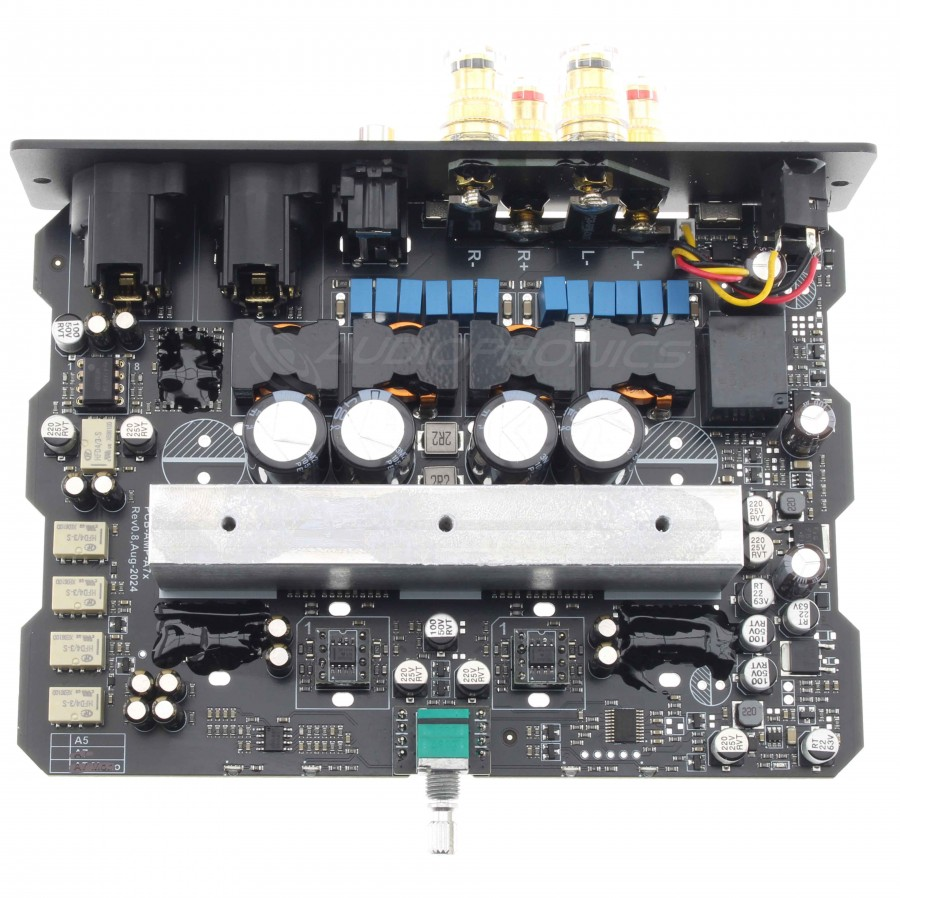

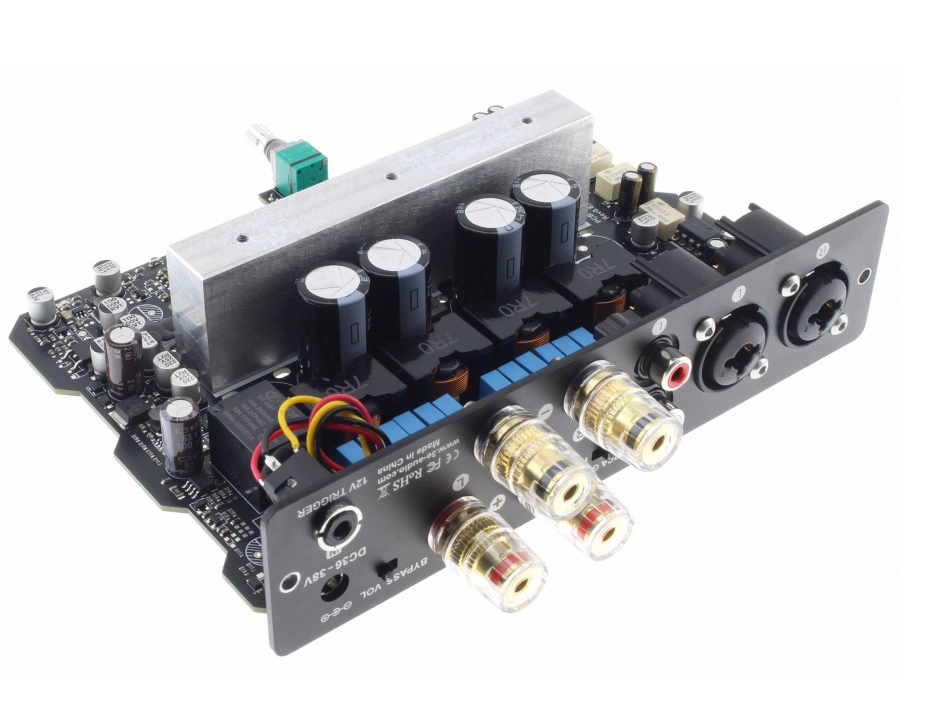

Amplification chip: 2x TI TPA3251

OPA: Dual OPA OPA1656

Structure: PFFB

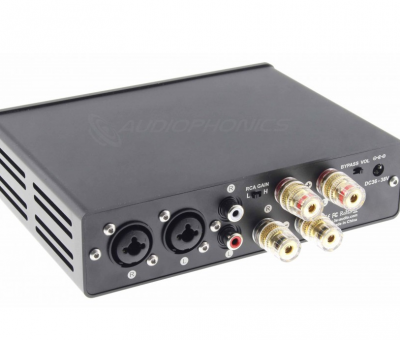

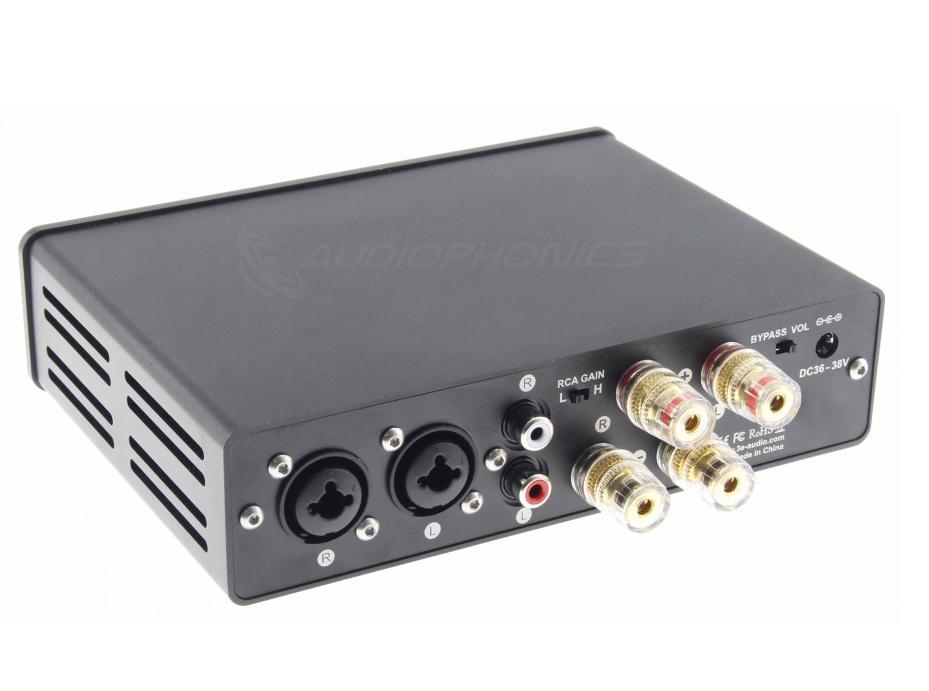

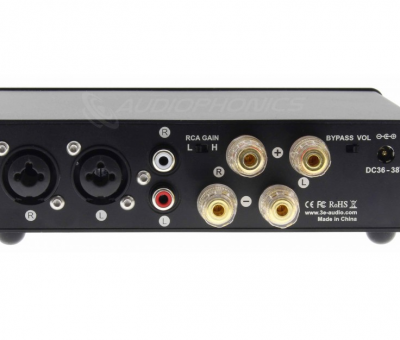

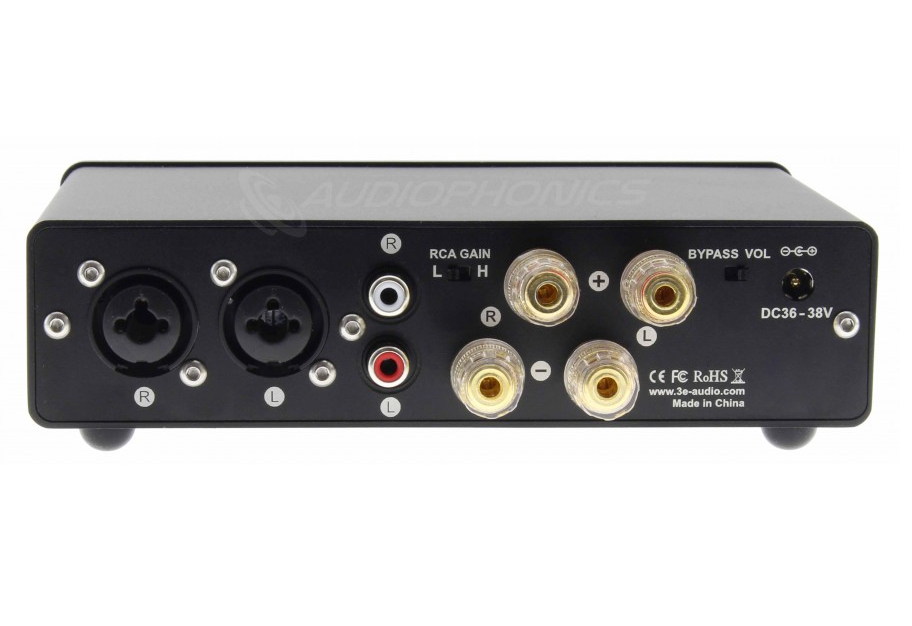

Inputs: 1x Single-ended RCA input

1x Balanced XLR/jack 6.35mm combo input

Output: 1x Speaker terminal output

Input impedance: RCA : 10kΩ, XLR/TRS : 20kΩ

Volume attenuation: -50dB

Audio specifications (RCA IN):

THD+N (5W): 0.0004% @ 4Ω, 0.0005% @ 8Ω

SNR:  (1% THD+N, 1KHz, A-wt)    123dB

Dynamic range:  (1% THD+N, 1KHz, A-wt)              123dB

Frequency response: (±0.5dB)     20Hz-35KHz

Noise (A-wt): < 15uVrms

Crosstalk: -100dB

Gain: 23dB / 26dB

Input sensitivity : 1.75Vrms

Output power:  (1% THD+N) 2x 150W @ 4Ω, 2x 80W @ 8Ω

Output power:  (10% THD+N)      2x 180W @ 4Ω, 2x 100W @ 8Ω

Output impedance: 2Ω-16Ω

audio specifications (XLR IN):

THD+N (5W): 0.0004% @ 4Ω, 0.0003% @ 8Ω

SNR: (1% THD+N, 1KHz, A-wt) 125dB

Dynamic range:  (1% THD+N, 1KHz, A-wt) 125dB

Frequency response: (±0.5dB) 20Hz-35KHz

Noise: (A-wt) < 13uVrms

Crosstalk: -110dB

Gain: 17dB

Input sensitivity: 3.5Vrms

Output power:  (1% THD+N), 2x 150W @ 4Ω, 2x 800W @ 8Ω

Output power: (10% THD+N) 2x 180W @ 4Ω, 2x 100W @ 8Ω

Output impedance: 2Ω-16Ω

General:

Supply voltage:  36V-38V DC 5A (The supplied power supply operates on 110V and 230V)

Power consumption: OFF: <0.2W

ON (no audio): 8W

Dimensions: 170 x 168 x 46mm

Weight: 1KG

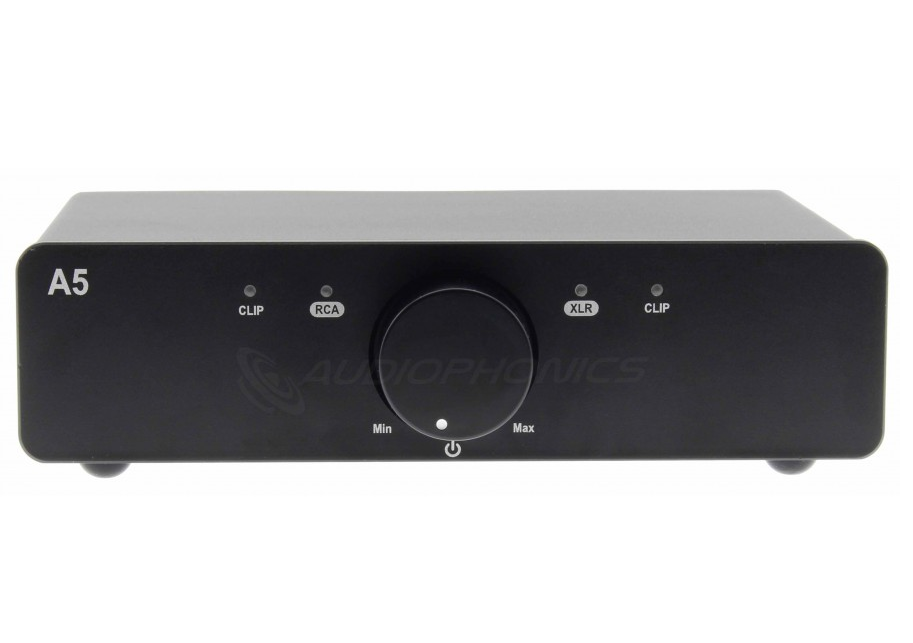

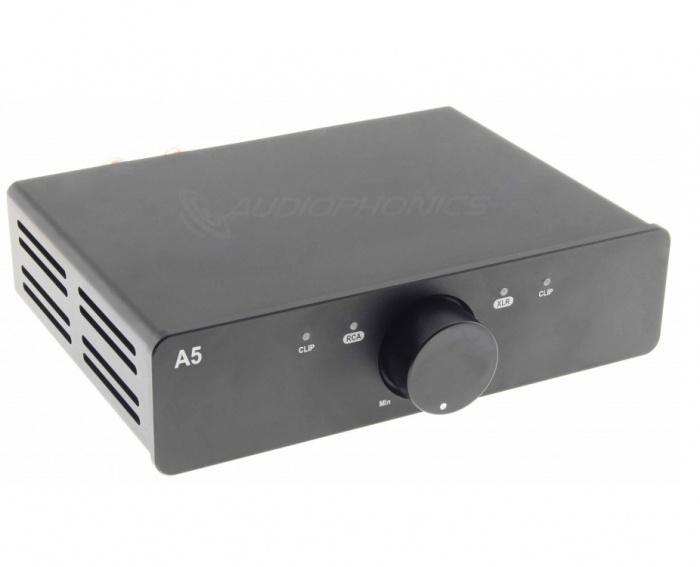

Package: 1x 3E Audio A5 amplifier

1x 36V 5A power adapter

Price BDT-28,500.00
