Model# PHONIC-MA200

TECHNICAL DETAILS


200mm Wide range drive unit 8ohm single ferrite magnet

    • Biggest size Markaudio driver
    • Completely new design, multi-use applications
    • Aerospace-grade aluminum magnesium mix alloy cone
    • Operating range to 20KHz
    • Balance low-frequency and high frequency
    • Advanced low-distortion motor design
    • Long-stroke, low resonance frequency
    • Aluminum chassis optimizes sound wave emittance and airflow



SPECIFICATIONS:

Model: Phonic-MA200

Driver: Mark Audio MA200-M

Impedance: 8 Ohms

Power: 50W RMS, 50W-100W

Total Quality Factor Value (QTS):0.345

Magnet Grade: Y38 (Ferrite)

Frequency response: 33Hz-20KHz

Sensitivity: 90.2dB

Weight: 78KG/Pair

Dimension: 972X266X362 mm

Price: 1,05,000.00

Product images

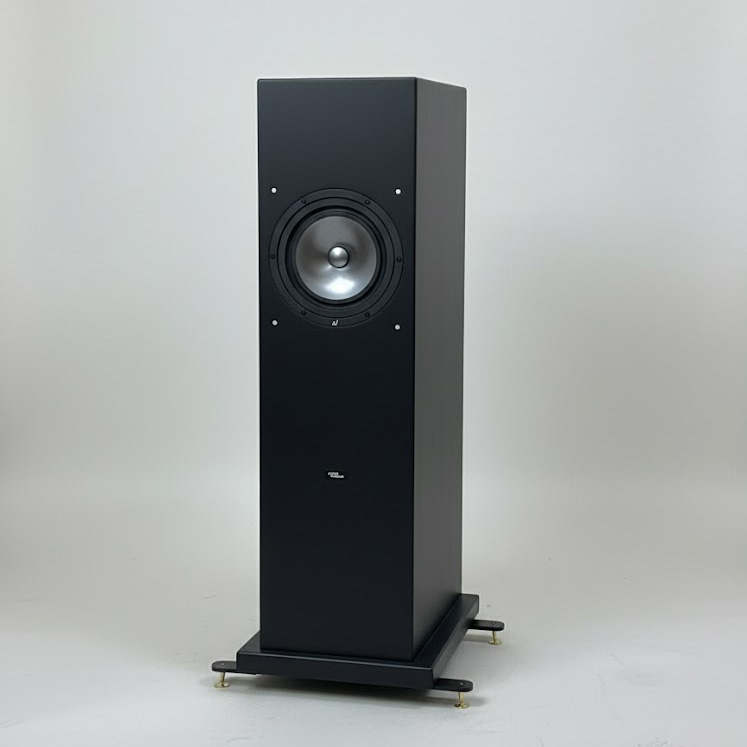

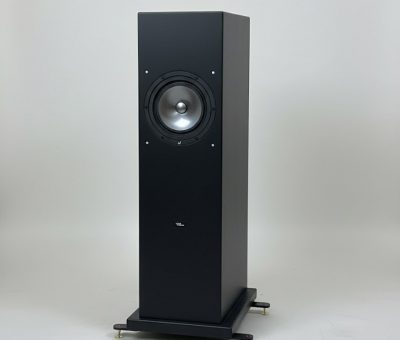

unnamed 3
PHONIC-MA200

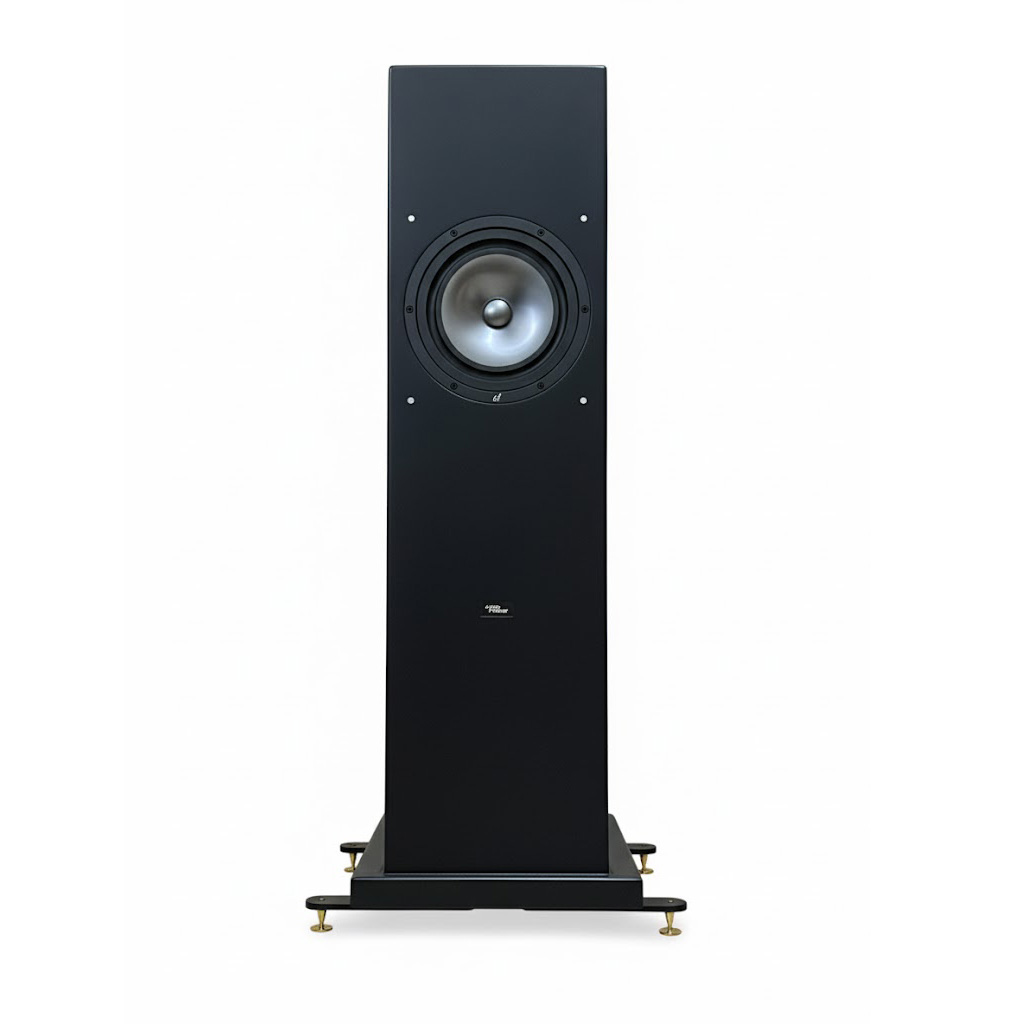

unnamed 1
PHONIC-MA200

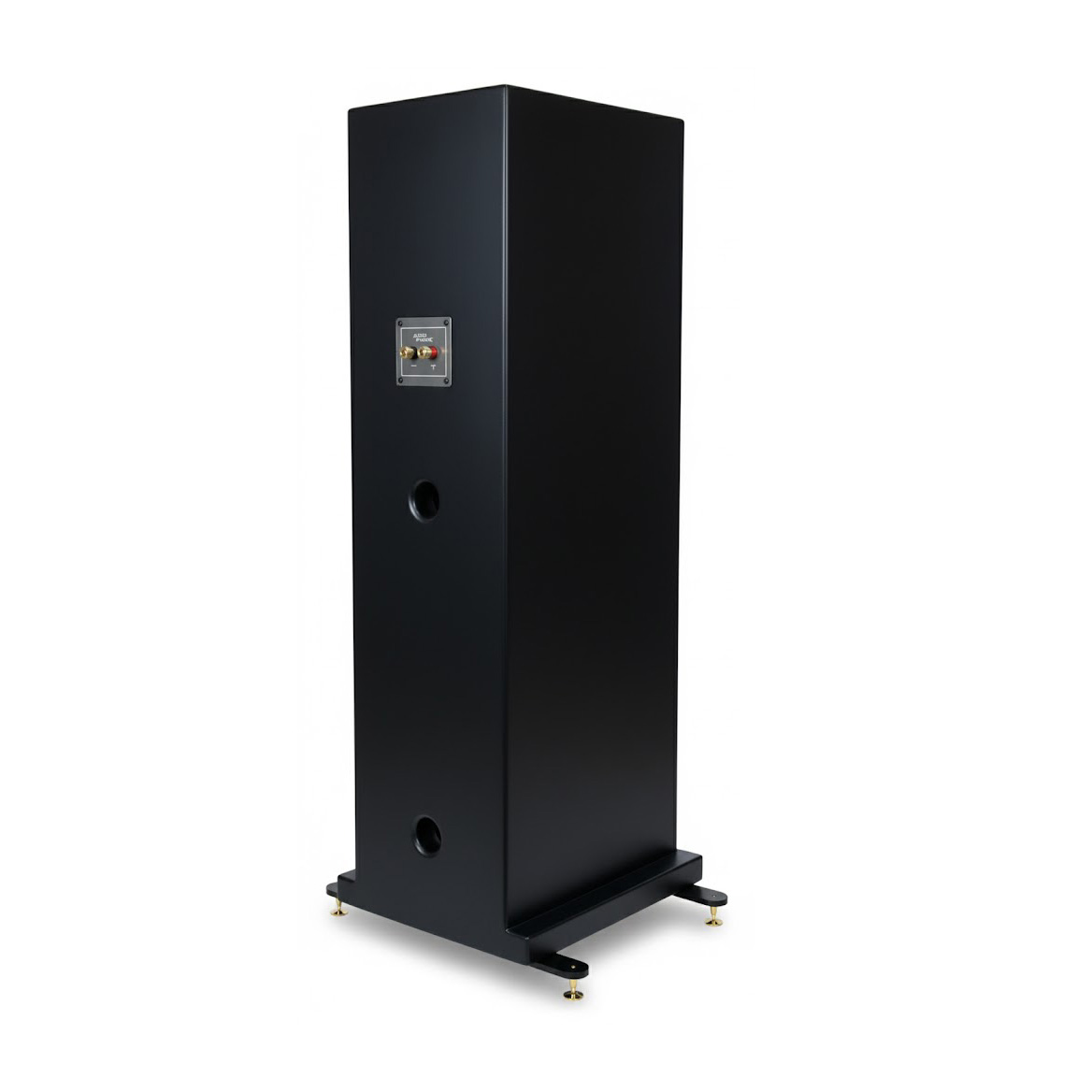

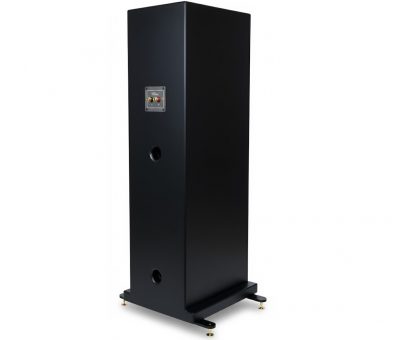

unnamed 6
PHONIC-MA200

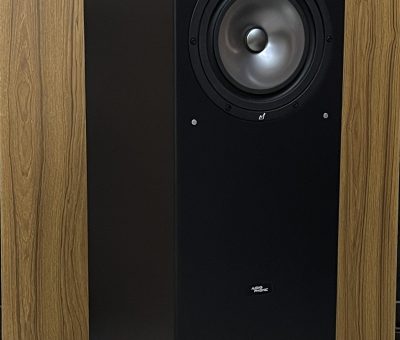

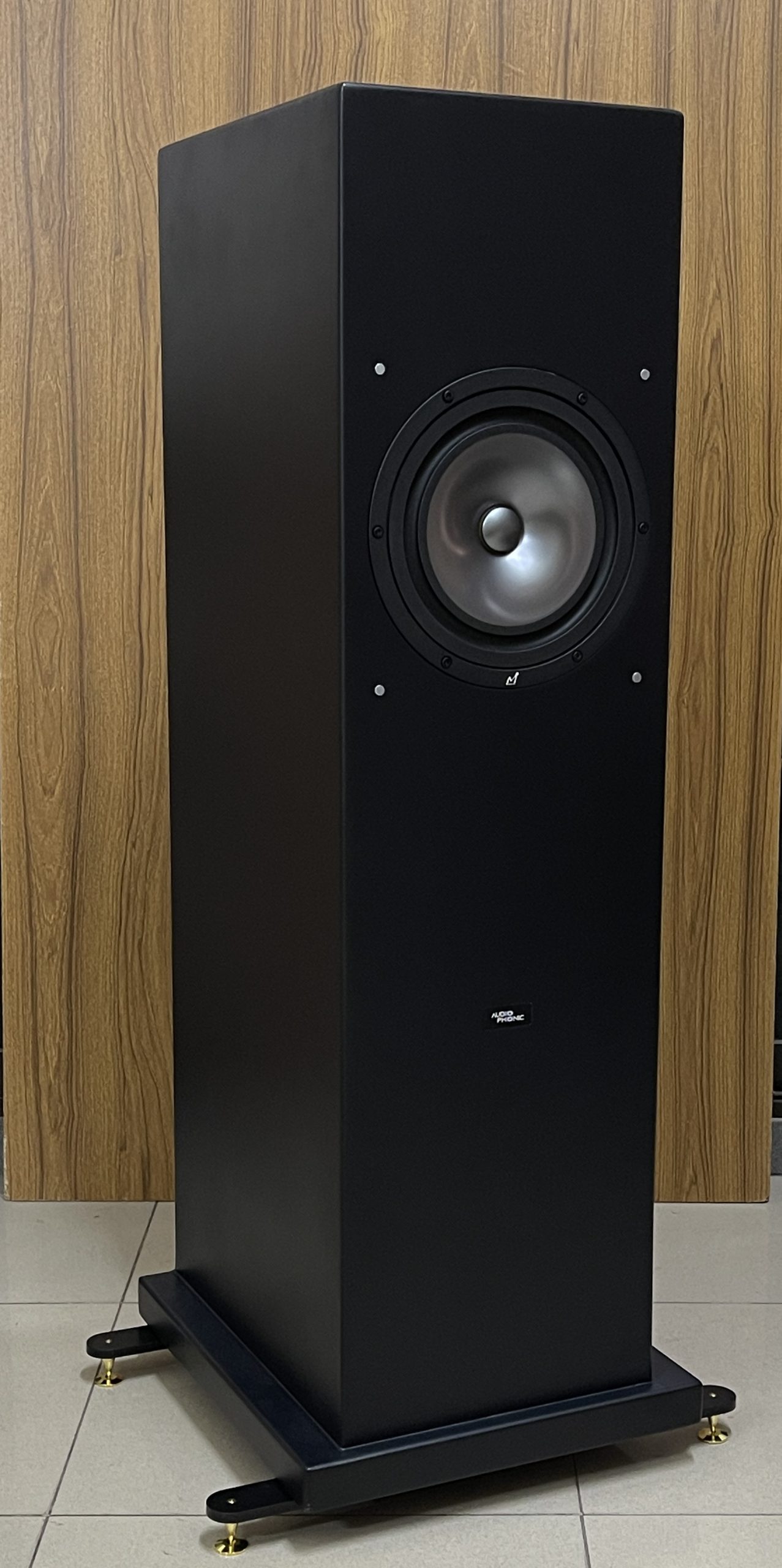

IMG_8133
PHONIC-MA200

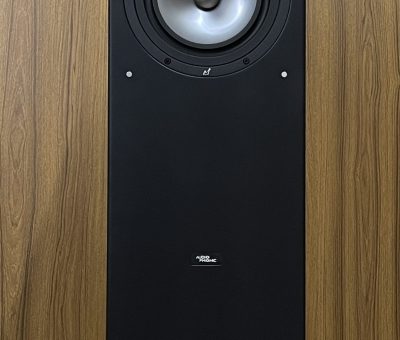

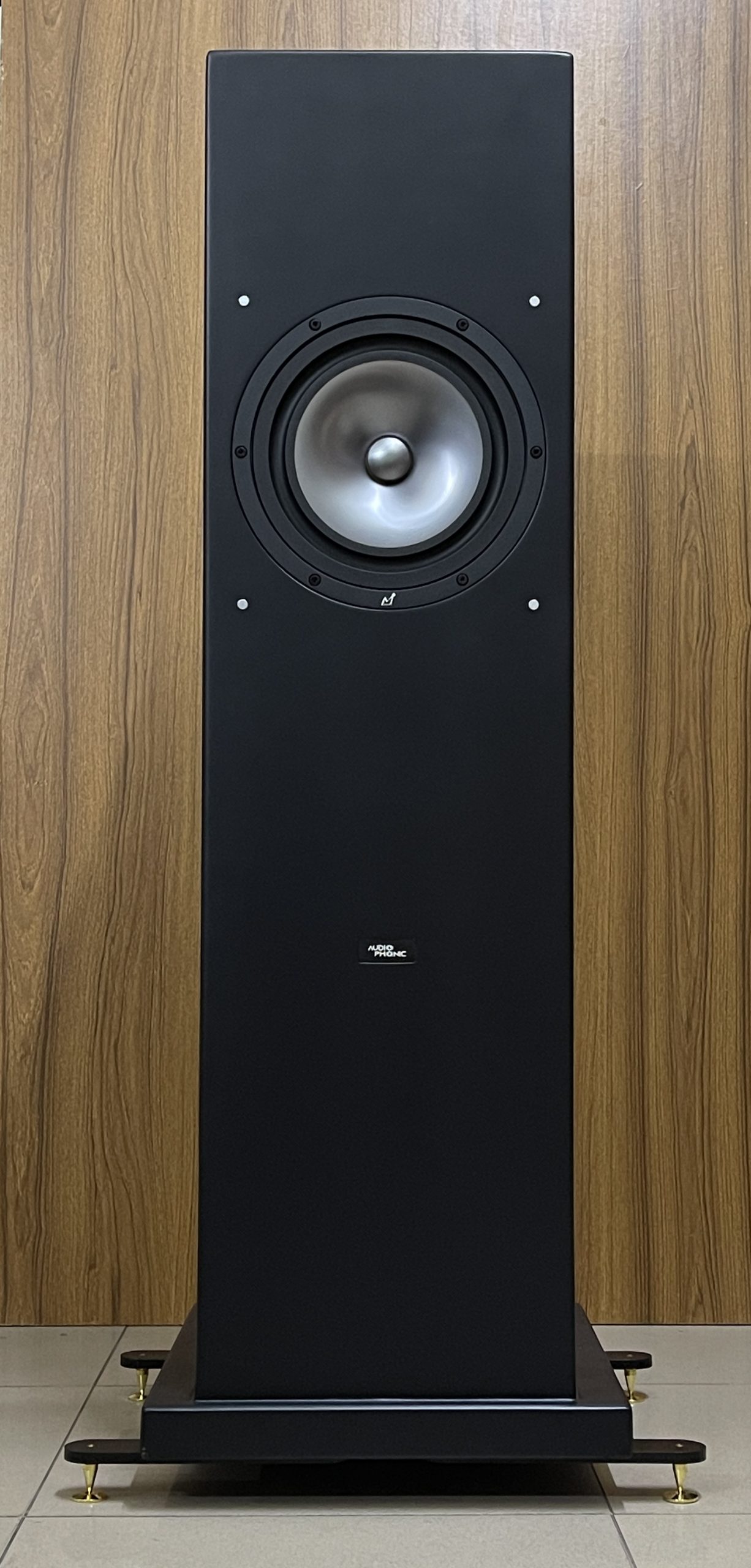

IMG_8128
PHONIC-MA200

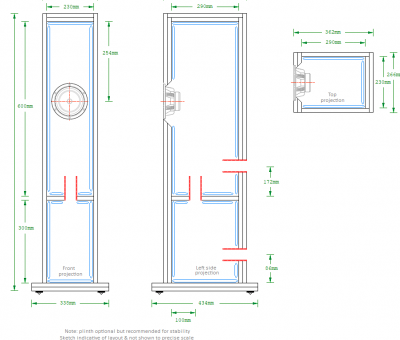

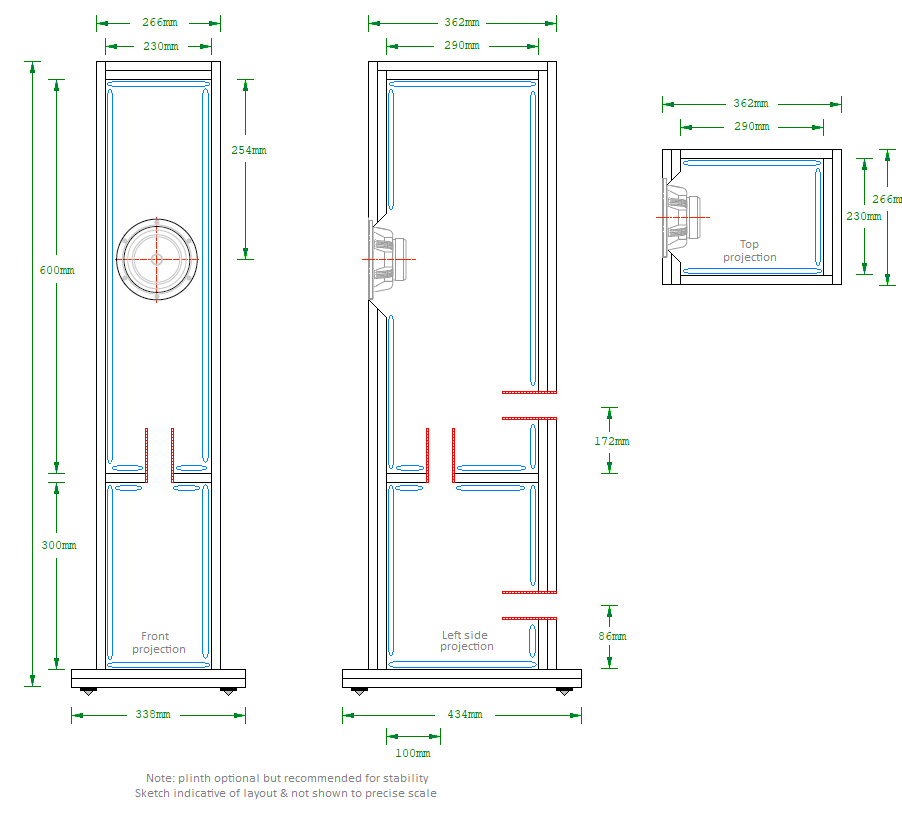

MA200M-Floorstanding-DCR
PHONIC-MA200
