Model# PHONIC-7.2HD

TECHNICAL


The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components, and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame. With a mounting depth of less than 4mm, the Pluvia may be surface or flush-mounted, and the design of the mounting legs is very open, allowing good airflow to the rear.

The low-mass coil, suspension and shallow-profile cone are highly efficient. Frequency response extends beyond 30KHz, and the generous 4mm (1-way) Xmax and conveniently balanced T/S parameters allow 40Hz bass output in suitable enclosure designs. The sound character is neutral and highly detailed, with excellent off-axis performance. It is an extremely flexible drive unit for music, small HT and commercial AV applications, and offers exceptional performance at an affordable price point.



SPECIFICATIONS:

Model: Phonic-7.2HD

Driver: Mark Audio Pluvia 7.2HD, Size-4.5″

Impedance: 8 Ohms

Power: 20W RMS, 20W-40W

Total Quality Factor Value (QTS):0.584

Magnet Grade: Y35 (Ferrite)

Frequency response: 47Hz-30KHz

Sensitivity: 86.6dB

Weight: 16KG/Pair

Dimension: 374X176X264 mm



Price: 30,000.00

Product images

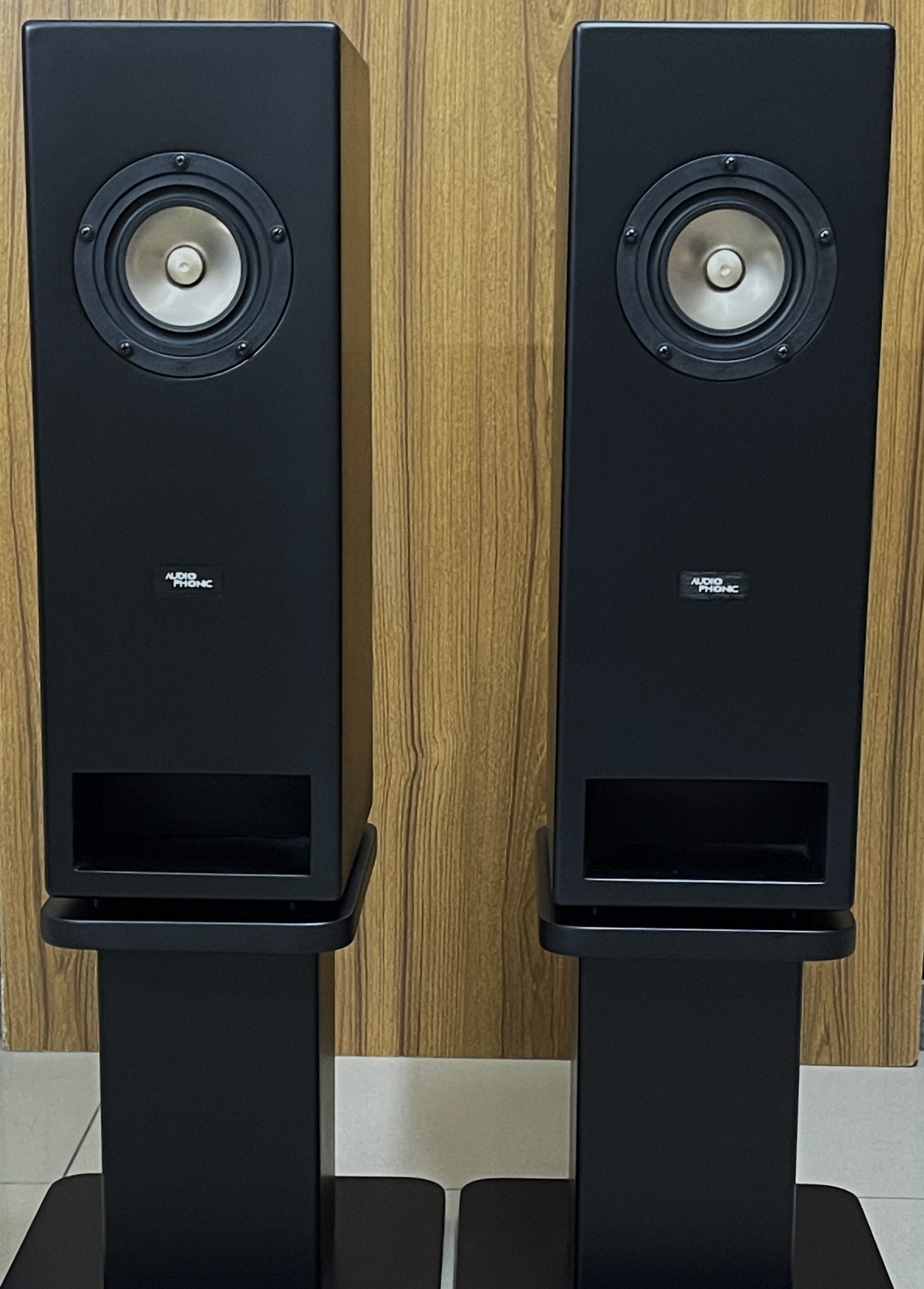

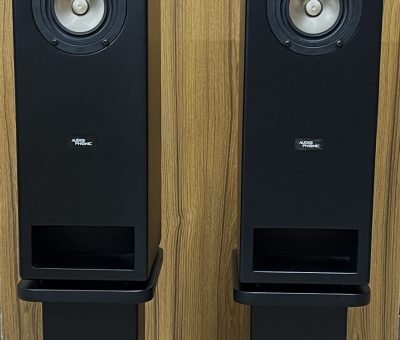

IMG_8069
PHONIC-7.2HD

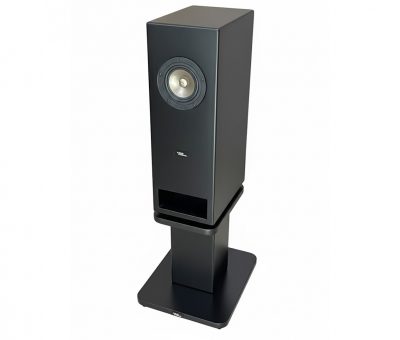

unnamed 7
PHONIC-7.2HD

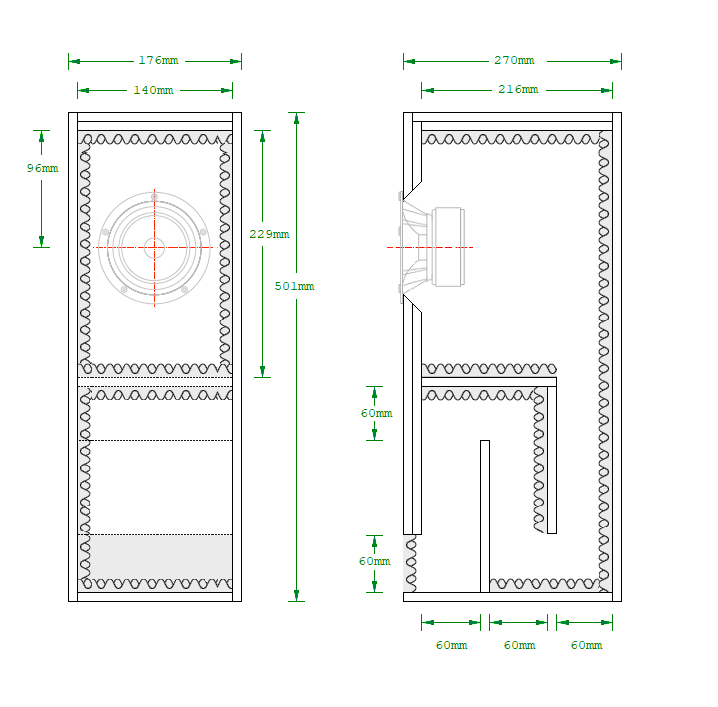

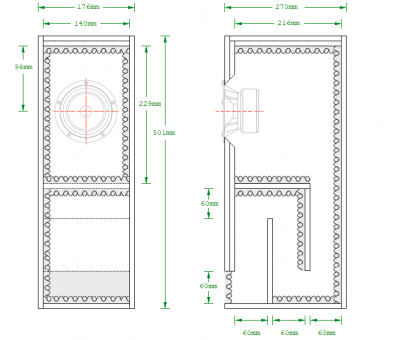

Nereid-Pluvia-7HD-RTL
PHONIC-7.2HD

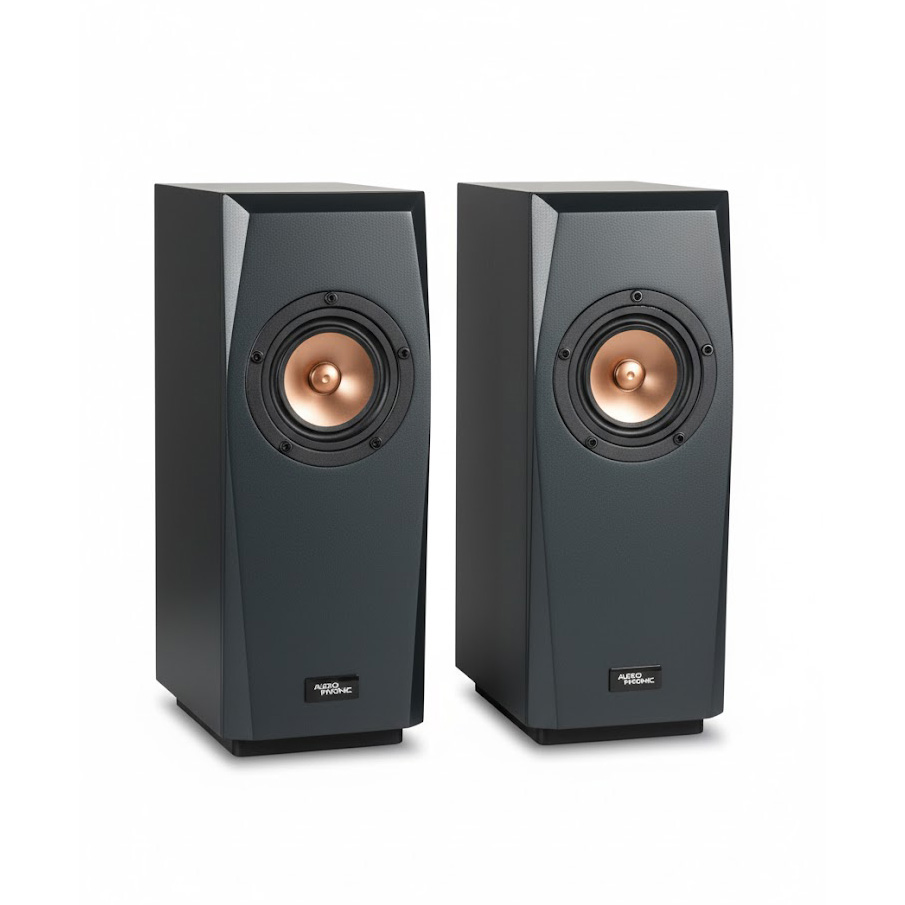

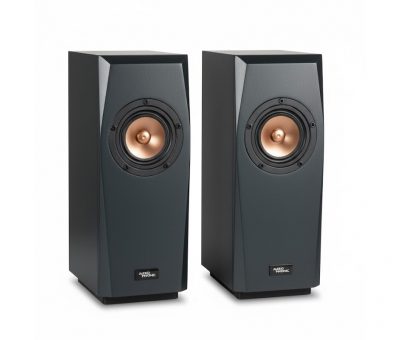

unnamed 5
PHONIC-7.2HD

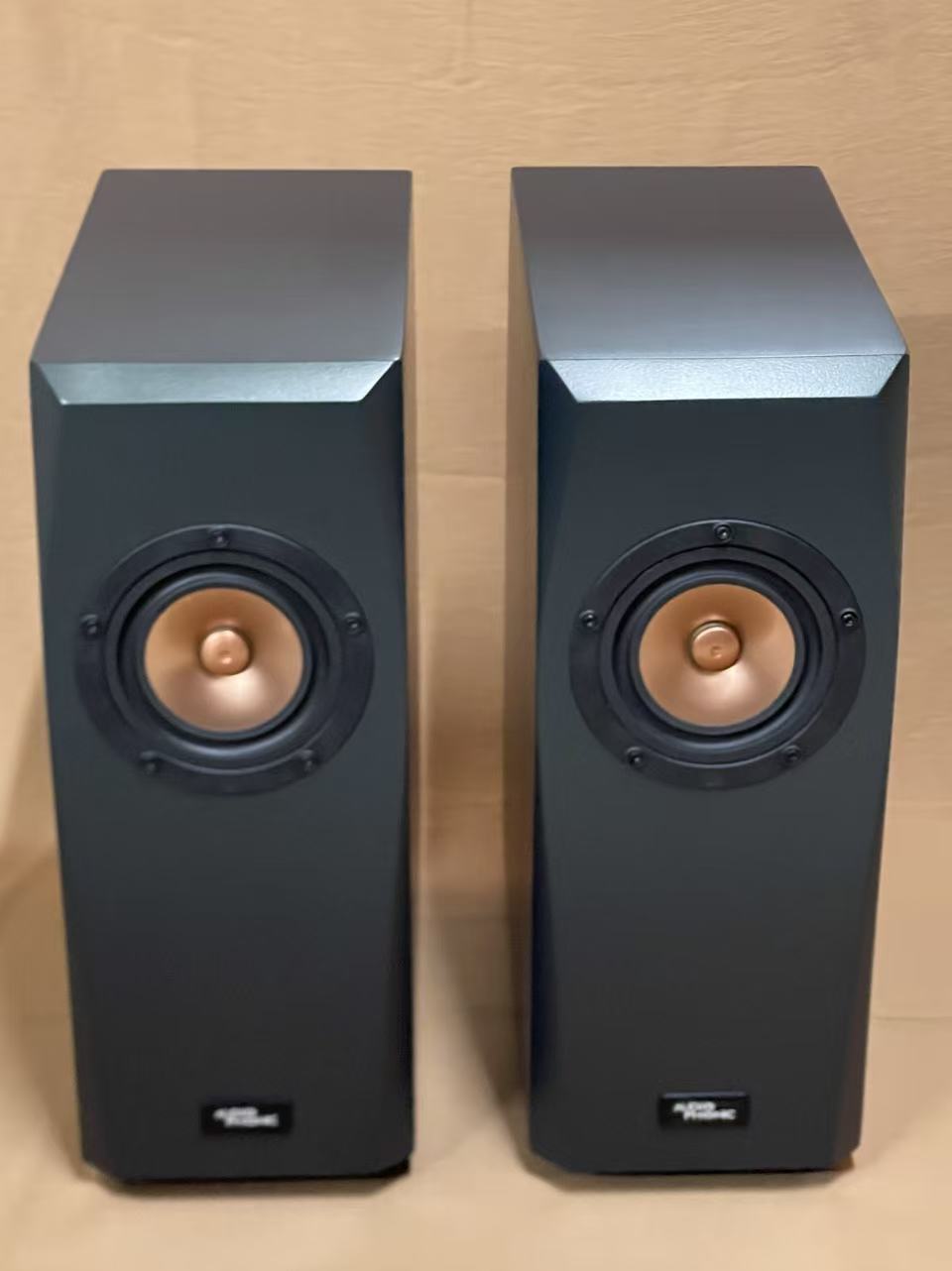

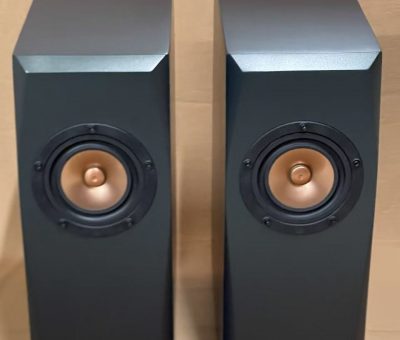

6
PHONIC-7.2HD

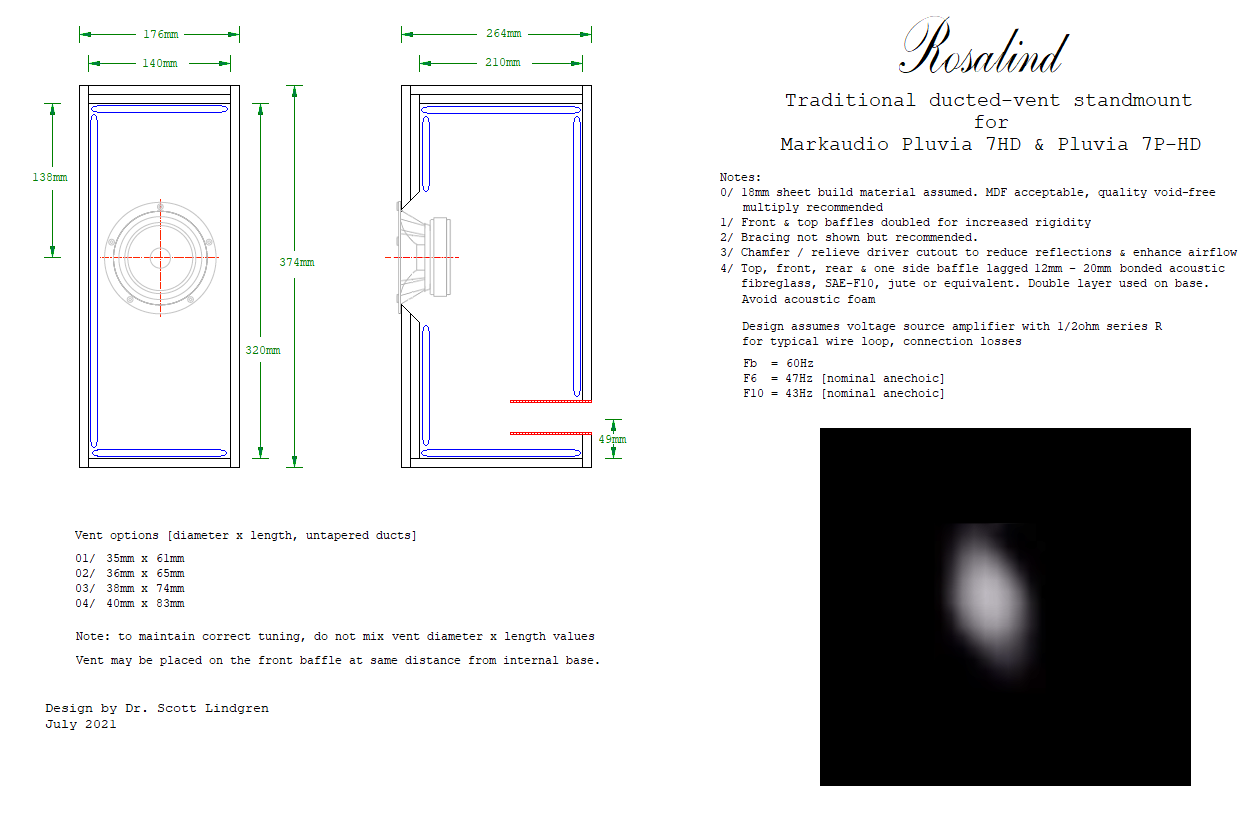

Rosalind-Pluvia-7HD-PHD-traditional-vented-box-standmount
