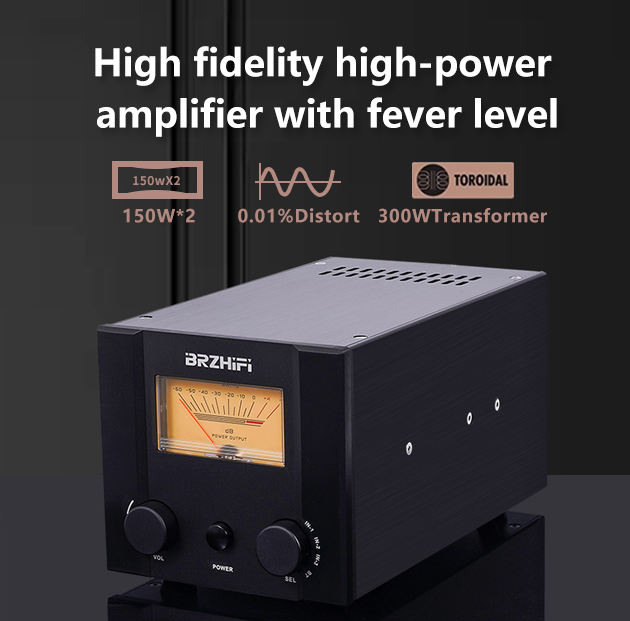

This machine is a reference to the Japanese lead core circuit of E – 360 merger amplifiers BRZHIFI A150 tube HiFi power amplifier, a fever input circuit part is symmetric structure, its characteristic is neutral stability and linear response of various level is more balanced, dynamic big wide frequency response, high SNR, appear a natural voice, because it is a symmetric structure at the same time, It puts forward high requirements for the matching accuracy of components. After making various comparisons in Golden Voice E series, we decided to make this circuit to share with you.
The circuit structure will increase the braking force at 8 ohms /100Wx2 and improve low frequency resolution in this case! The tone is smooth and deep. The voice in the higher range is less harsh and more clear.
The S/N improvement is not only for sound quality, making the sound more dynamic as the value goes up. The sound is more real.

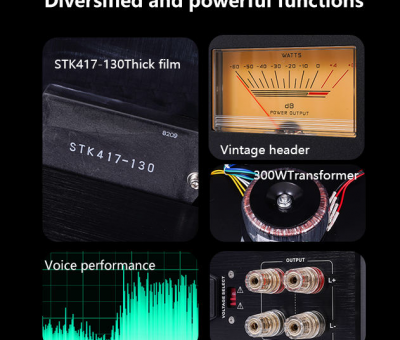

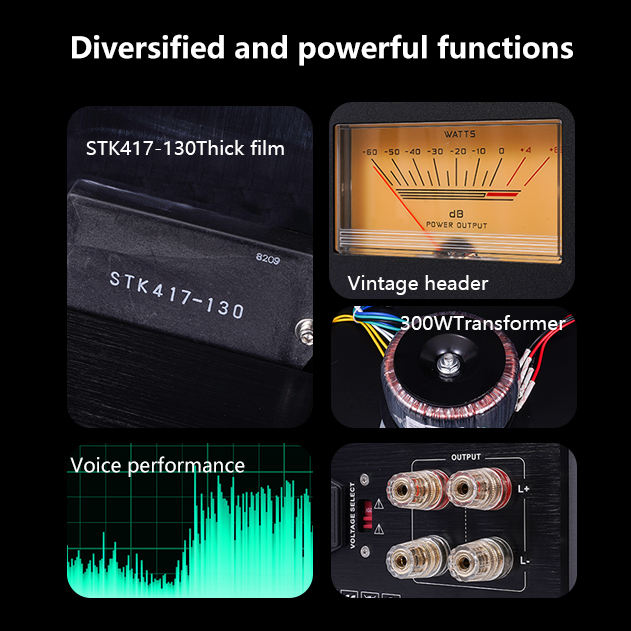

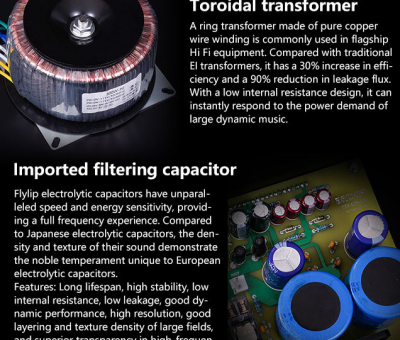

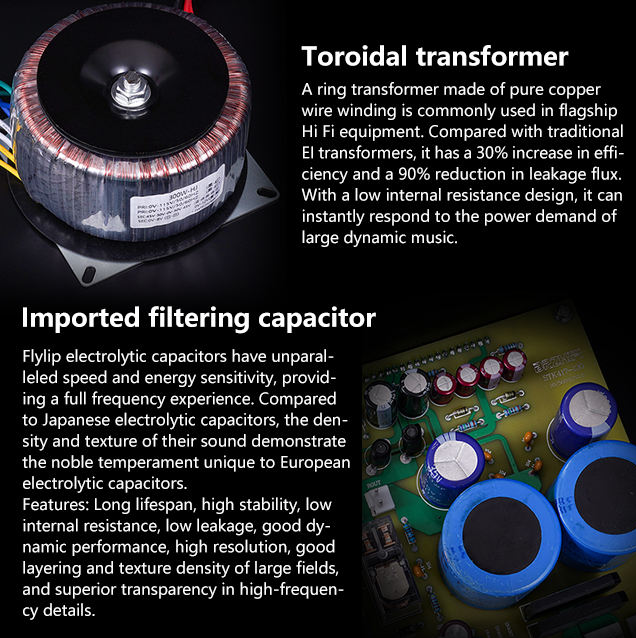

This machine adopts Toshiba K1530/J201 FET power output tube, 2 pairs per sound channel, the circuit is powered by a customized 400W double 45V output power transformer.
Rated continuous average output :140W/ CH (4 ω), 120W/ CH (6 ω), 100W/ CH (8 ω)
Total harmonic distortion: 0.03% 4 ~ 16 ω load (two channels at the same time 20Hz ~ 20kHz)
IM distortion rate: 0.01%
Frequency characteristics :
POWER INPUT Rated continuous average output at 20Hz ~ 20khz-0.2dB; 1W output at 3Hz ~ 150khz-3.0dB;
HIGH LEVEL INPUT rated continuous average output at 20Hz ~ 20Khz-0.2dB
Power consumption :280W
Dimensions :370W×120H×307D mm
Weight :14kg (with packing)
