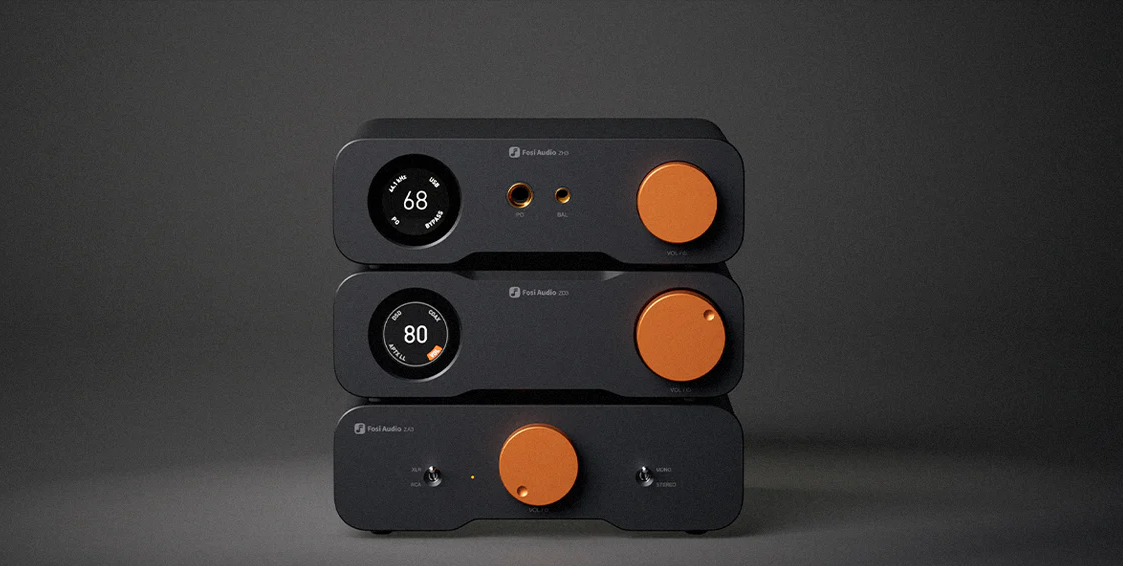

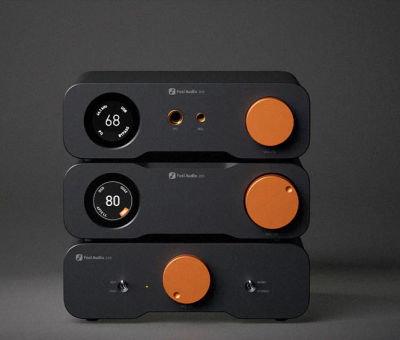

• An all-in-one desktop HiFi DAC/headphone amp/preamp: With premium chipsets and self-developed fully balanced circuitry, low noise and low distortion. Perfect for HiFi headphones or active speakers, it’s the ultimate desktop audio solution.
• Exceptional Sound Quality: Premium chipset with AKM4493SEQ DAC, XMOS XU316 processor, and four OPA1612 amps supports up to PCM 768kHz/32bit & DSD512. A self-developed dual-power balanced amp circuit with multiple ultra-low-noise LDOs and capacitors keeps noise as low as 1.9μV.

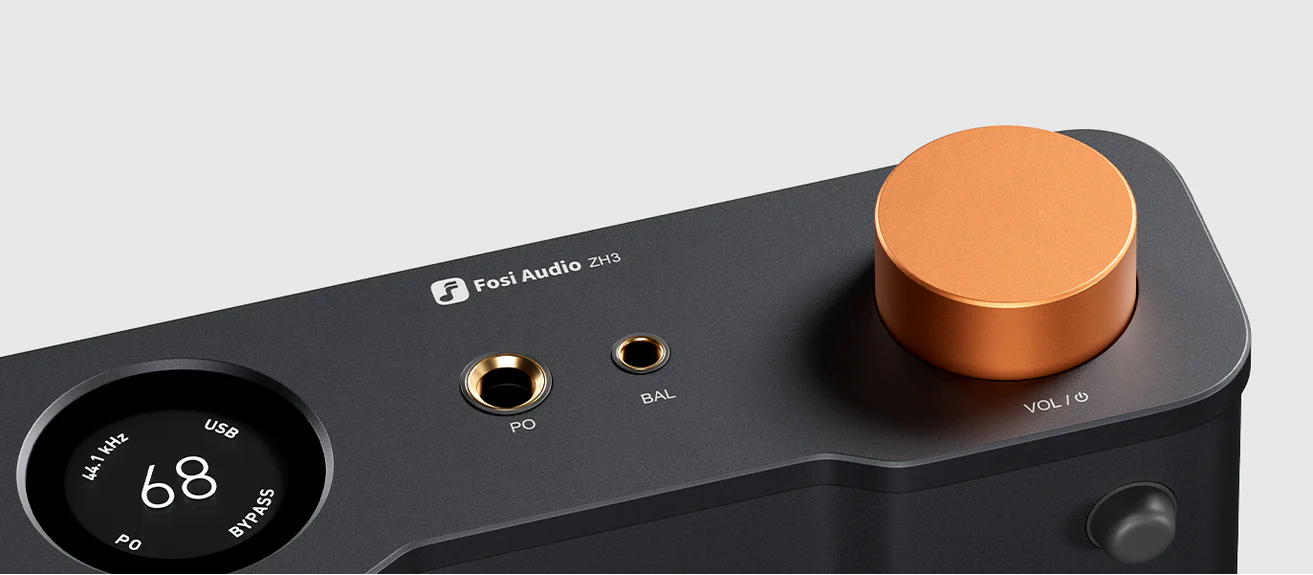

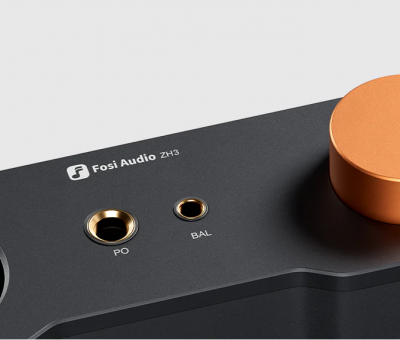

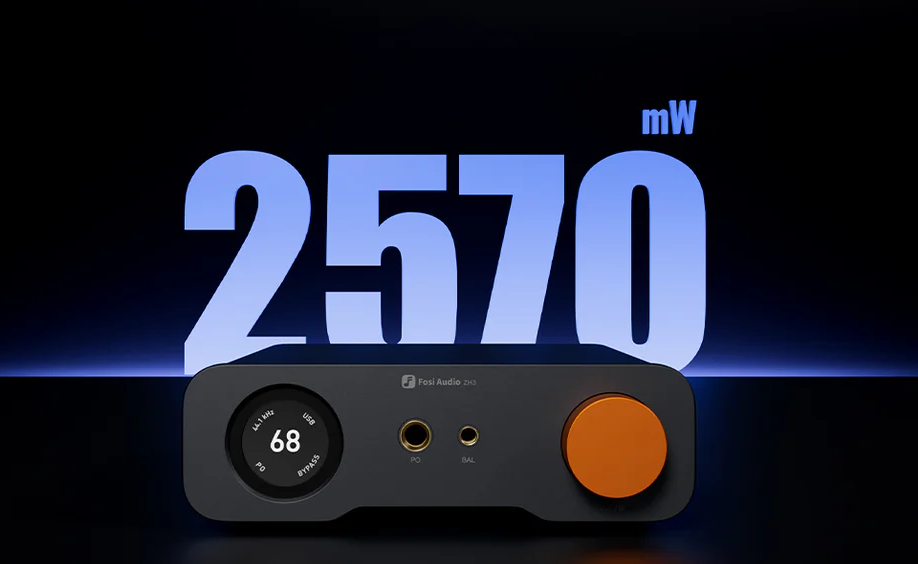

• High Output Power: Equipped with both 6.35mm single-ended (640mW@32Ω x2) and 4.4mm balanced (2570mW@32Ω x2) outputs. The 3-level gain switch supports headphones ranging from 16Ω to 300Ω, making it perfect for almost in-ears and over-ear headphones.

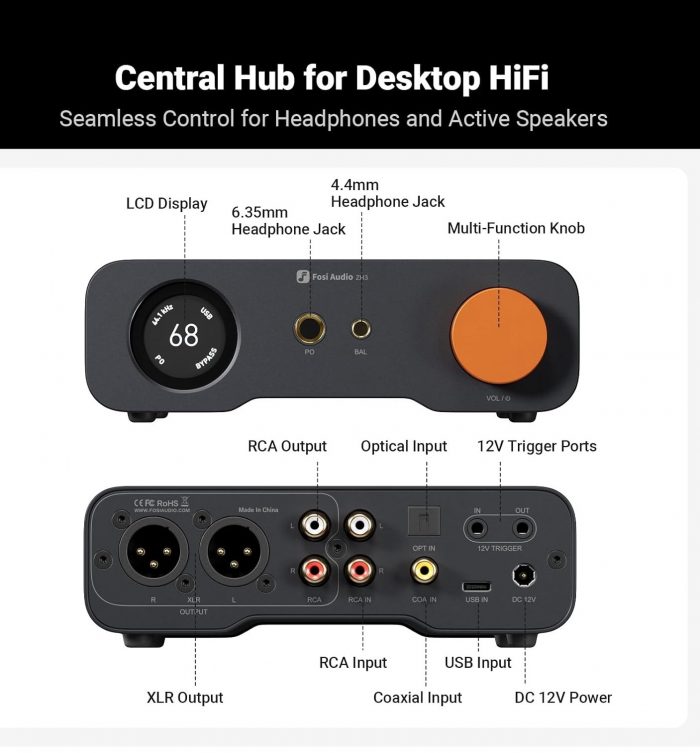

• Versatile & Flexible: With coaxial, optical, USB, and RCA inputs, plus 4.4mm, 6.35mm, RCA, and XLR outputs, it connects to diverse audio sources and devices. Functions as a DAC/amp/preamp for desktop HiFi. UAC mode switching ensures full compatibility with game consoles for both music and gaming.

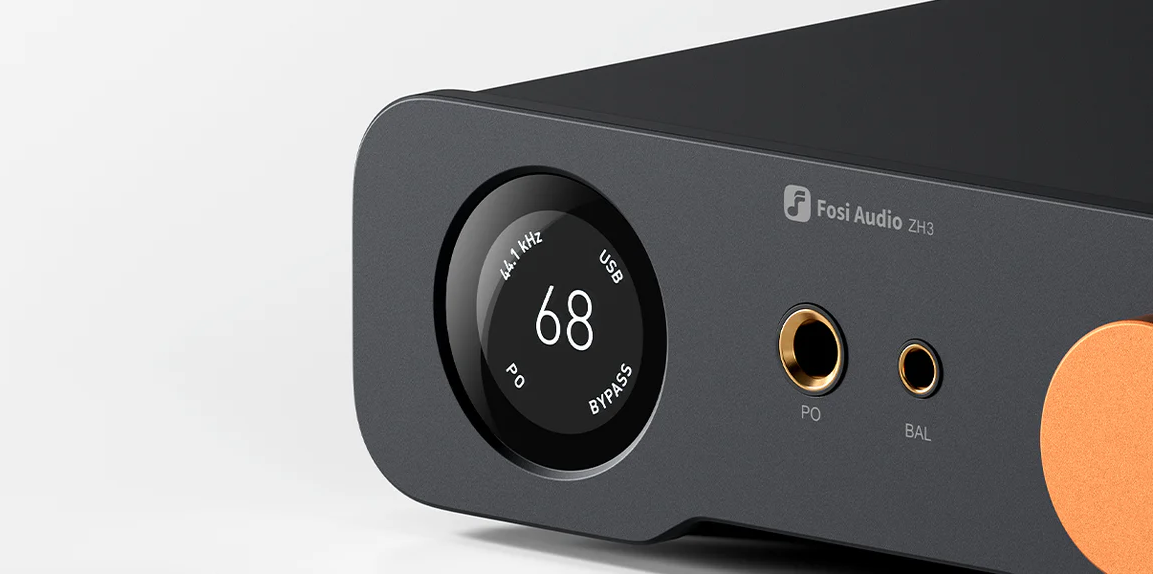

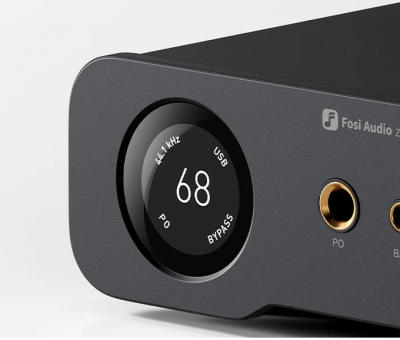

• Rich Customization: Features bass/treble EQ adjustments and 6 filter types, including Bypass mode and two swappable op-amps, allowing you to customize the sound to match your preference. All functions are integrated into the screen for a clean, premium look that continues the Z-Series design language.

Specifications

General

• Chipset: XMOS XU316 + AKM4493SEQ + OPA1612 × 4
• Inputs: Coaxial, Optical, USB, RCA
• Outputs: 4.4mm Balanced, 6.35mm Single-Ended, RCA, XLR
• Headphone Impedance: 16 – 300 Ω
• Power Input: DC 12 V

Supported Sampling Rates

• USB: PCM 32-bit/768 kHz, DSD512
• Optical: PCM 24-bit/192 kHz
• Coaxial: PCM 24-bit/192 kHz

4.4 mm Balanced Headphone Output

• Maximum Output Power: 2570 mW × 2 (32 Ω, THD+N < 1%)
• SNR: ≥ 119 dB
• Dynamic Range: ≥ 119 dB
• THD: ≤ 0.00018%
• Noise Floor: ≤ 4.9 μV

6.35 mm Single-Ended Headphone Output

• Maximum Output Power: 640 mW × 2 (32 Ω, THD+N < 1%)
• SNR: ≥ 121 dB
• Dynamic Range: ≥ 121 dB
• THD: ≤ 0.00024%
• Noise Floor: ≤ 1.9 μV
