Quick Details:
Description:

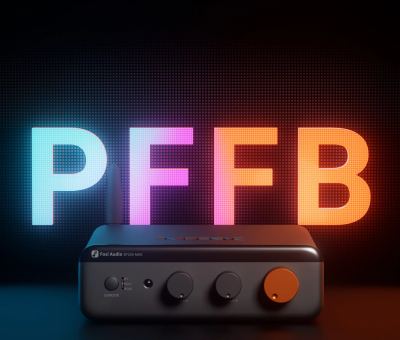

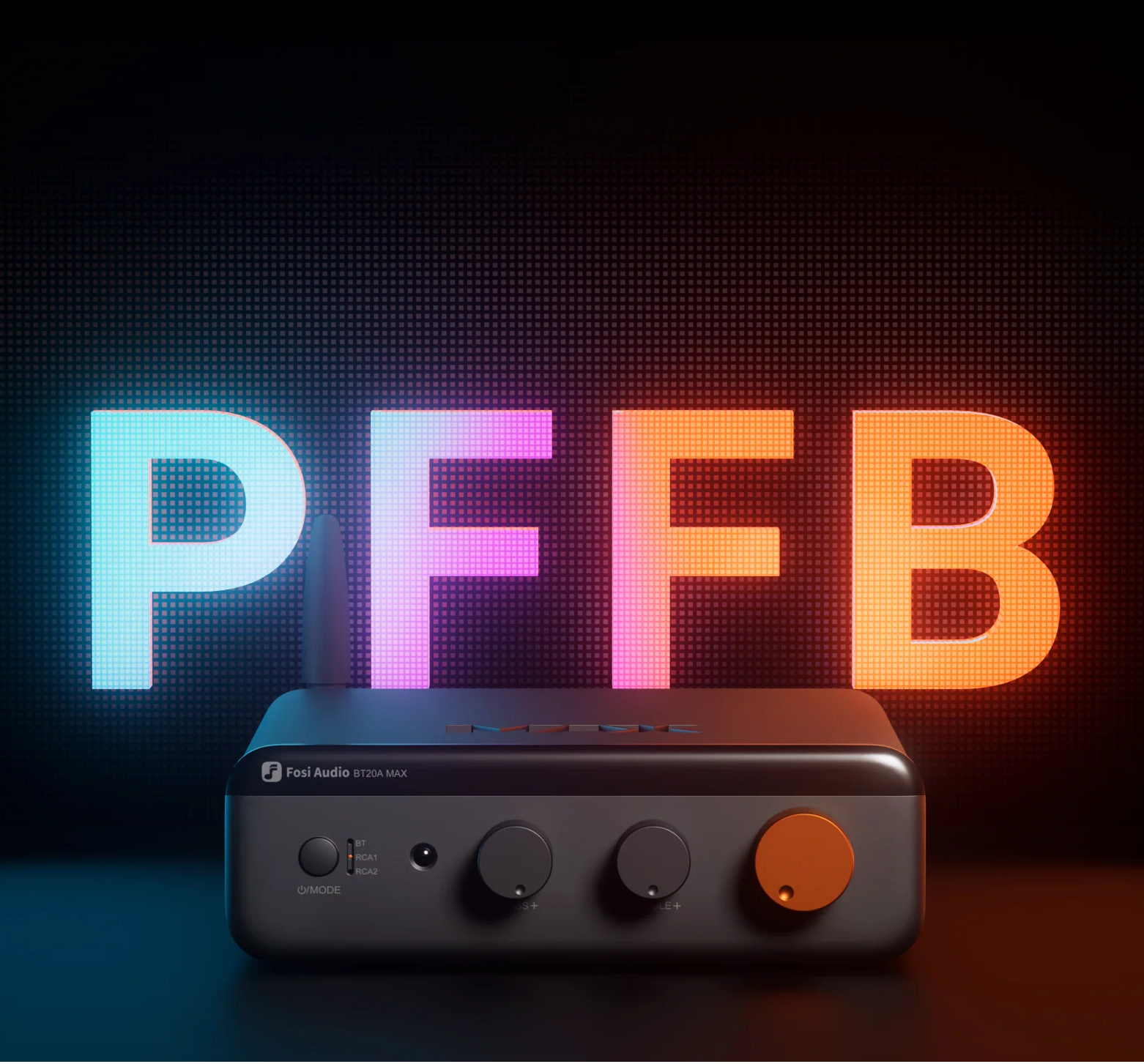

Purity Sound: Featuring PFFB technology and dual independent power supply, this stereo amplifier delivers ultra-low distortion (≤0.003%) and high SNR (≥112dB). It can reduce noise interference, resulting in a clean, detailed audio performance.

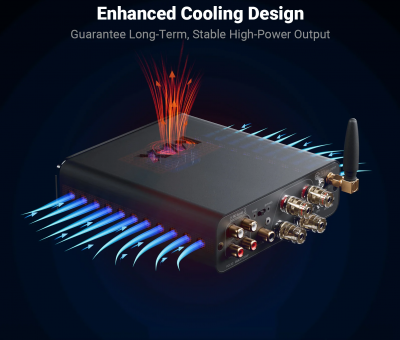

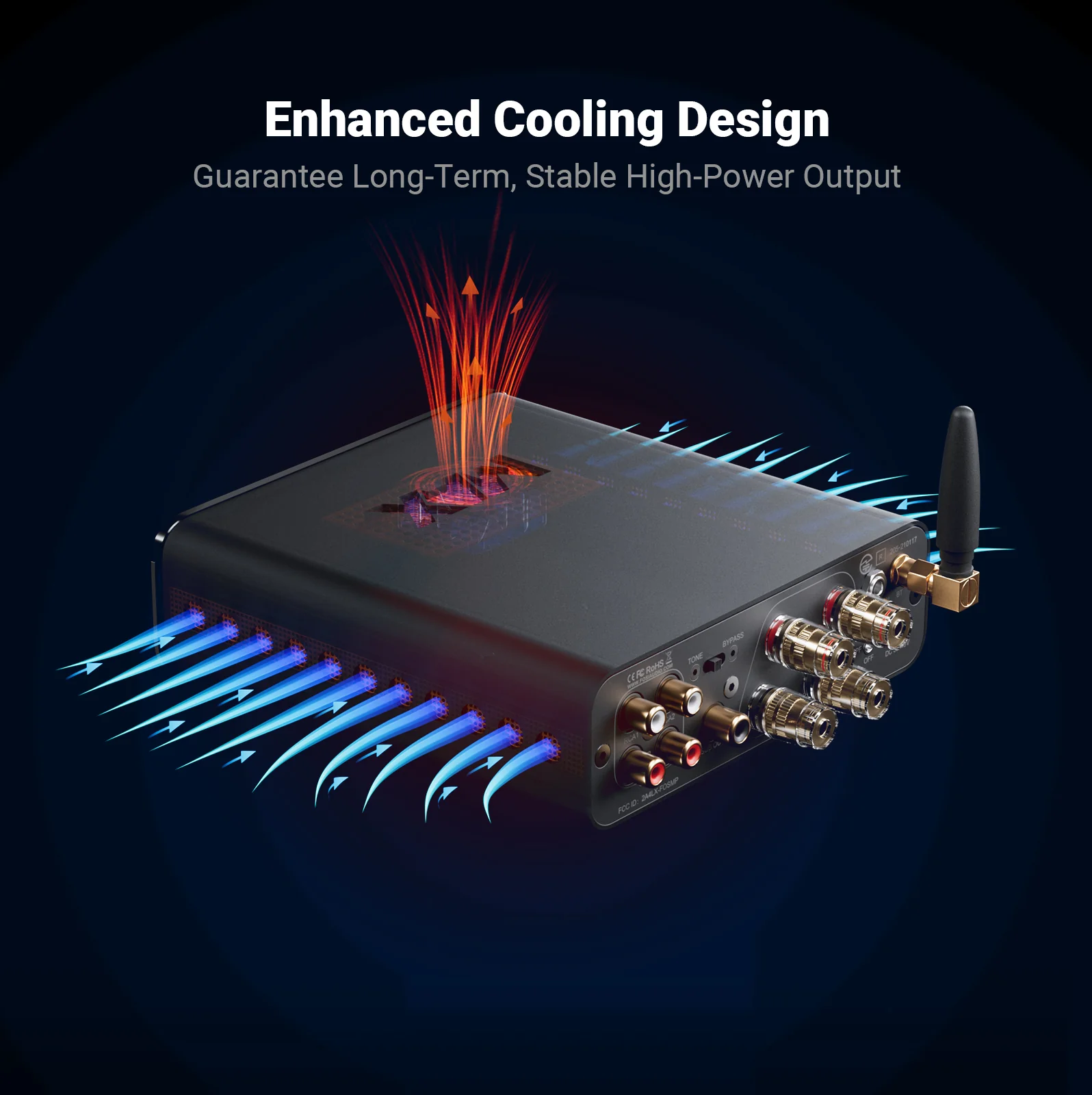

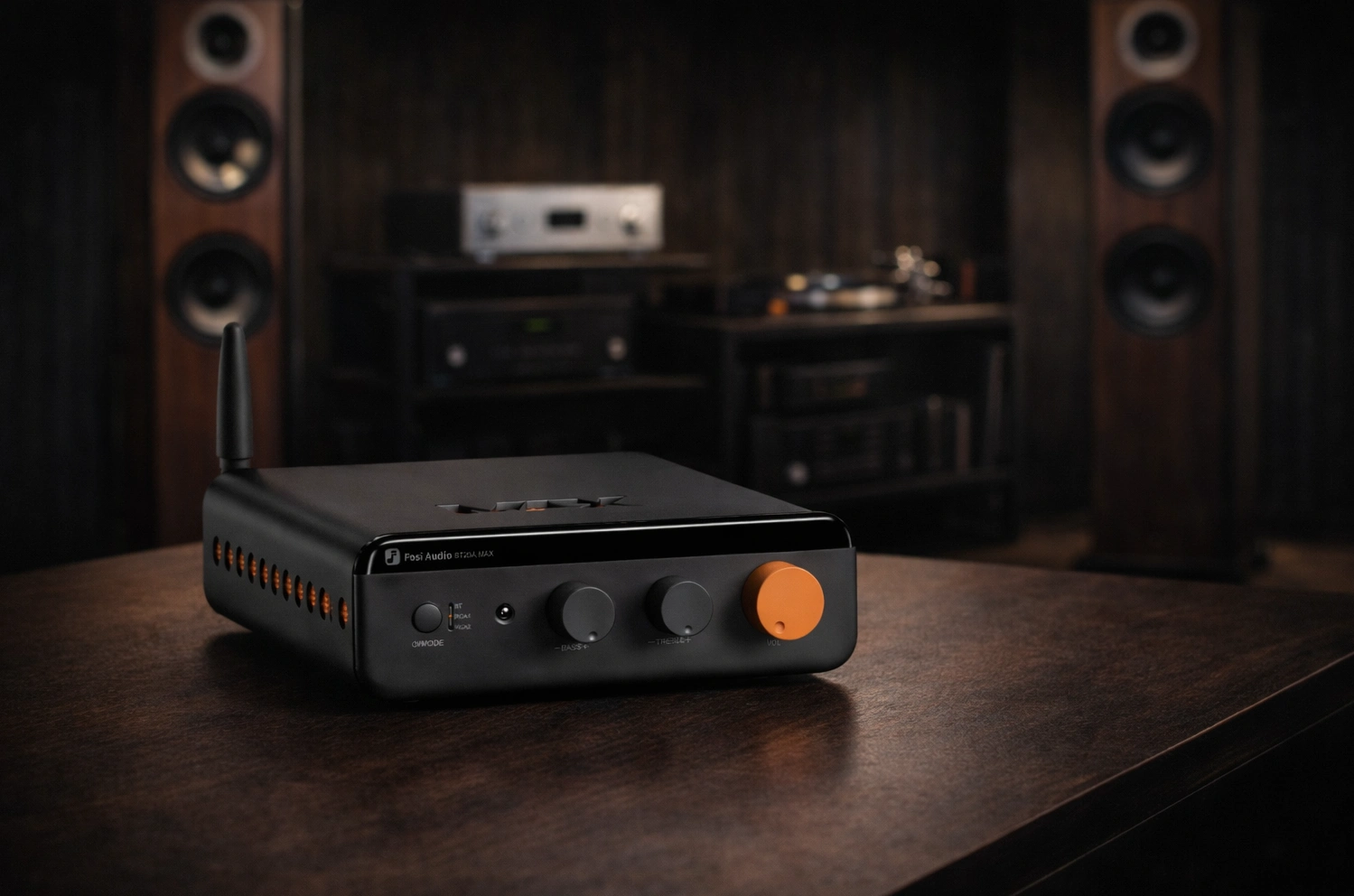

Enhanced Cooling System: Powered by the TPA3255 & NE5532 chips, the BT20A MAX delivers 300W per channel. Its enhanced design includes a built-in silent fan, improving cooling efficiency by 30% over the PRO version for stable, high-power performance.

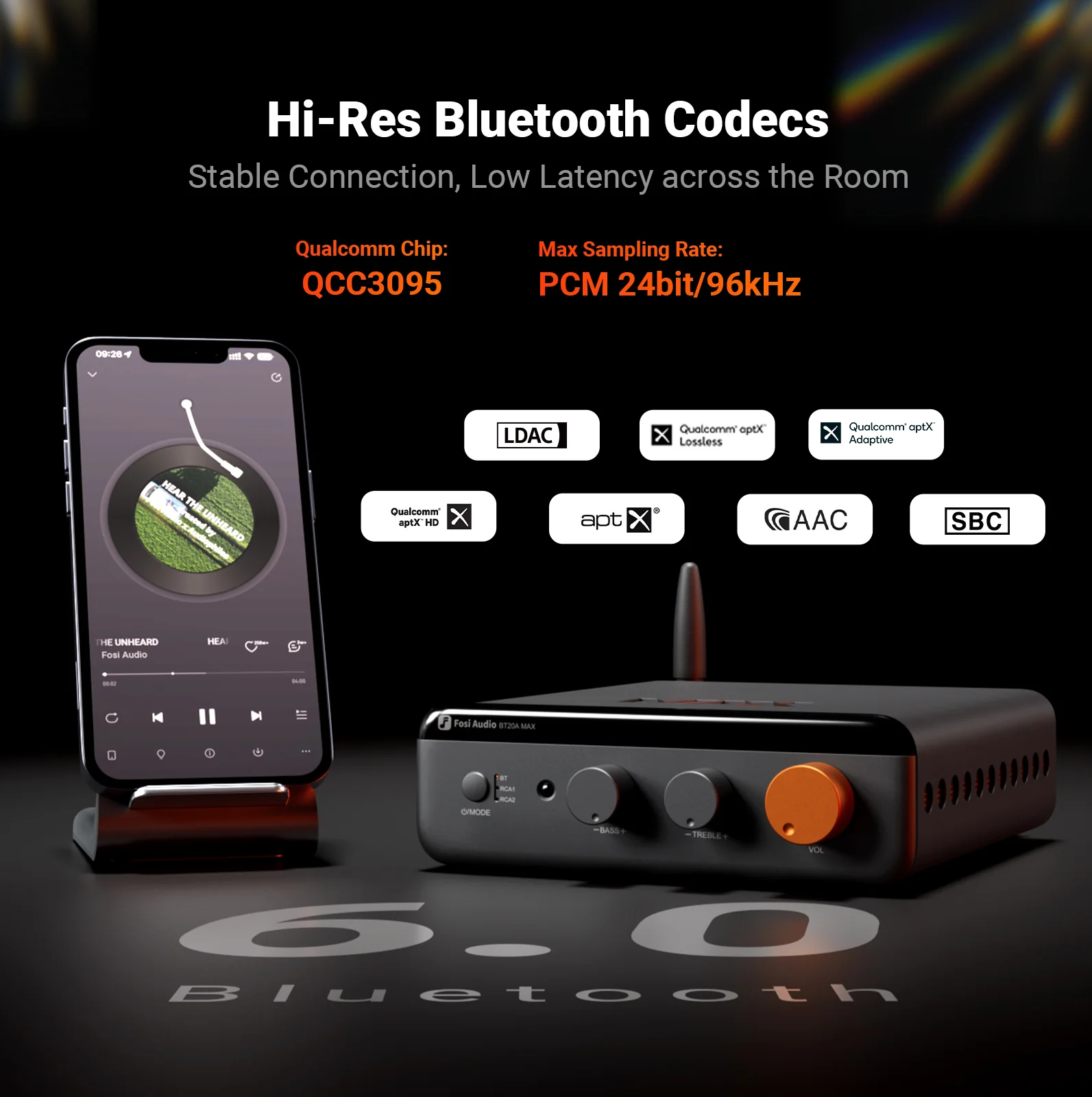

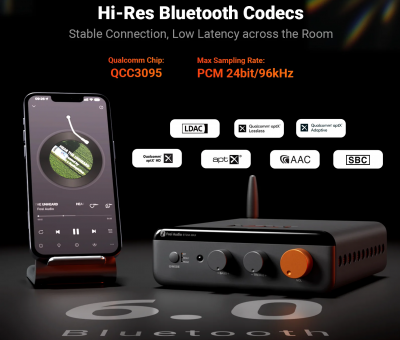

Hi-Res Bluetooth Connectivity: Equipped with Qualcomm Chip QCC3095, Bluetooth 6.0 with support for LDAC/aptX Lossless/aptX HD/aptX Adaptive/aptX/SBC/AAC codecs, max sampling rate PCM 24bit/96kHz. Delivering a stable, low-latency connection.
Versatile Connectivity: Featuring dual RCA inputs, dedicated subwoofer output, and the motorized analog potentiometer allows precise adjustments via the included remote control, perfect for building a 2.1 amplifier home audio system.
All-in-One Audio Control: Enjoy pure sound with Bypass mode, while customizable bass & treble controls in Tone mode. The 12V Trigger input enable synchronized power on/off, and the HPF adjustment for speaker performance.
Specifications
- Channel: 2.1
- Chipset: TI TPA3255, NE5532

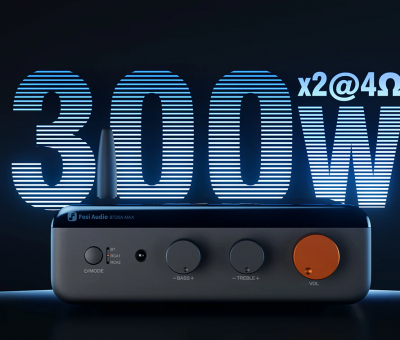

- Max Output Power: 300W × 2 @ 4Ω
- RMS Output Power: 180W × 2 @ 4Ω
- Input: RCA1 / RCA2 / Bluetooth
- Output: Speaker Out / Sub Out
- SNR: ≥ 112 dB
- THD+N: ≤ 0.003%
- Terminal Impedance: 2–8Ω
- Bluetooth SoC: Qualcomm QCC3095
- Bluetooth Device Name: Fosi Audio BT20A MAX
- Bluetooth Version: 6.0
- Bluetooth Connection Range: ≤ 15 m (50 ft)
- Bluetooth Audio Codecs: SBC / AAC / aptX / aptX HD / aptX Adaptive / aptX Lossless / LDAC
- Frequency Response: 20 Hz–20 kHz (±0.5 dB)
- Voltage Range: DC 32 V–48 V
Price: 32,000.00
