Model# AP-1875 WiFi

Technical Details:


Function Description: WiFi2.4G&5G/Bluetooth5.0/Aux

*Wi-Fi protocol: IEEE 802.11 a/b/g/n/ac 1×1 dual band WiFi 2.4 GHz and 5GHz *Bluetooth protocol: BT5.0 with EDR and BLE

*Support WiFi/Bluetooth/RCA input/optical input/U disk playback *Support RCA output/optical fiber output



 *Support APP interconnection control



 *Support Airplay2/DLNA/Qplay streaming media protocol

*Support Airplay, Bluetooth, RCA-in multi-room playback



*Support Qobuz, Spotify, Tuneln, iHeartRadio, Amazon music, Tidal etc.



*The core circuit is the GC version, the full name is Gain card. It is a good sound LM1875 circuit optimized after repeated comparison and verification. The frequency bandwidth, delicate, durable, midpoint and stable, if you have not played LM1875 before Buy it and try it, if you have bought LM1875, you can even buy it as an upgrade.

*Using a good-sounding CG circuit architecture, the sound is very delicate and durable, with a stable midpoint. 4 parallel X2 Class A outputs.

*40000UF large-capacity filtering, excellent low-frequency dive.

*Adopting double-sided gold-plated military PCB, good electrical conductivity, not easy to oxidize.

*Add red pentoxide copper inductor to the output to eliminate interference and clutter, and the sound quality is purer and more natural.

*Japan Omron protection circuit, use more assured.

*Full advanced component configuration.

Product parameter:

*Output power: 45W-8 ohms 60W 4 ohms (5W for pure Class A)
* Impedance range: 1-8 ohms
*Frequency response: 10HZ-40KHz
*THD: ≤0.03%
*SNR:>100dB
*Dimensions: width280*height70*depth208MM
*Gross Weight: 7KG



Price: BDT-25,000.00

Product images

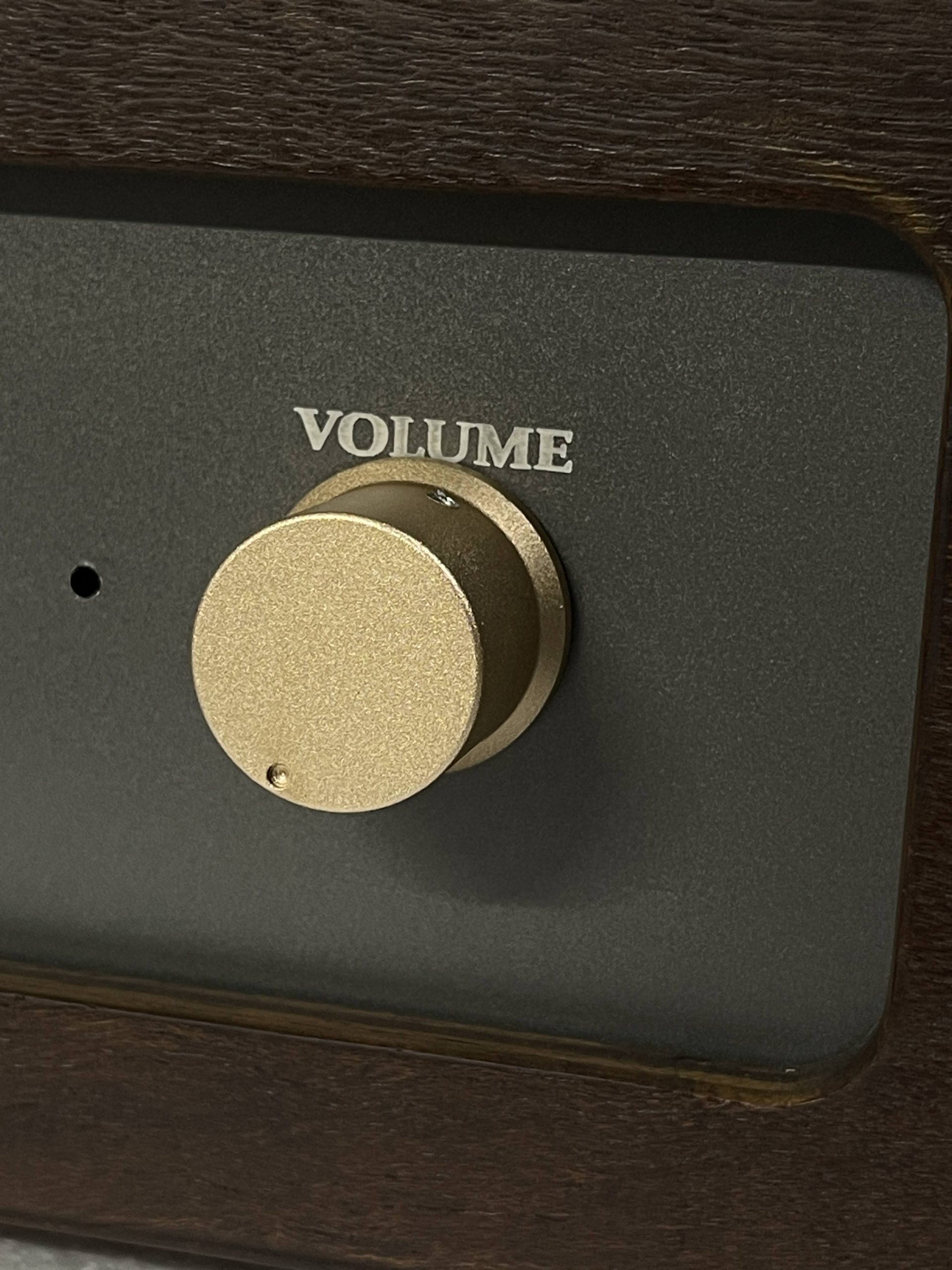

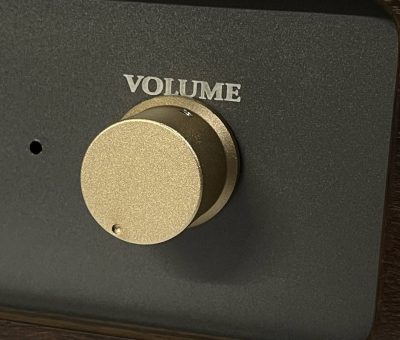

IMG_4641
AP-CH460

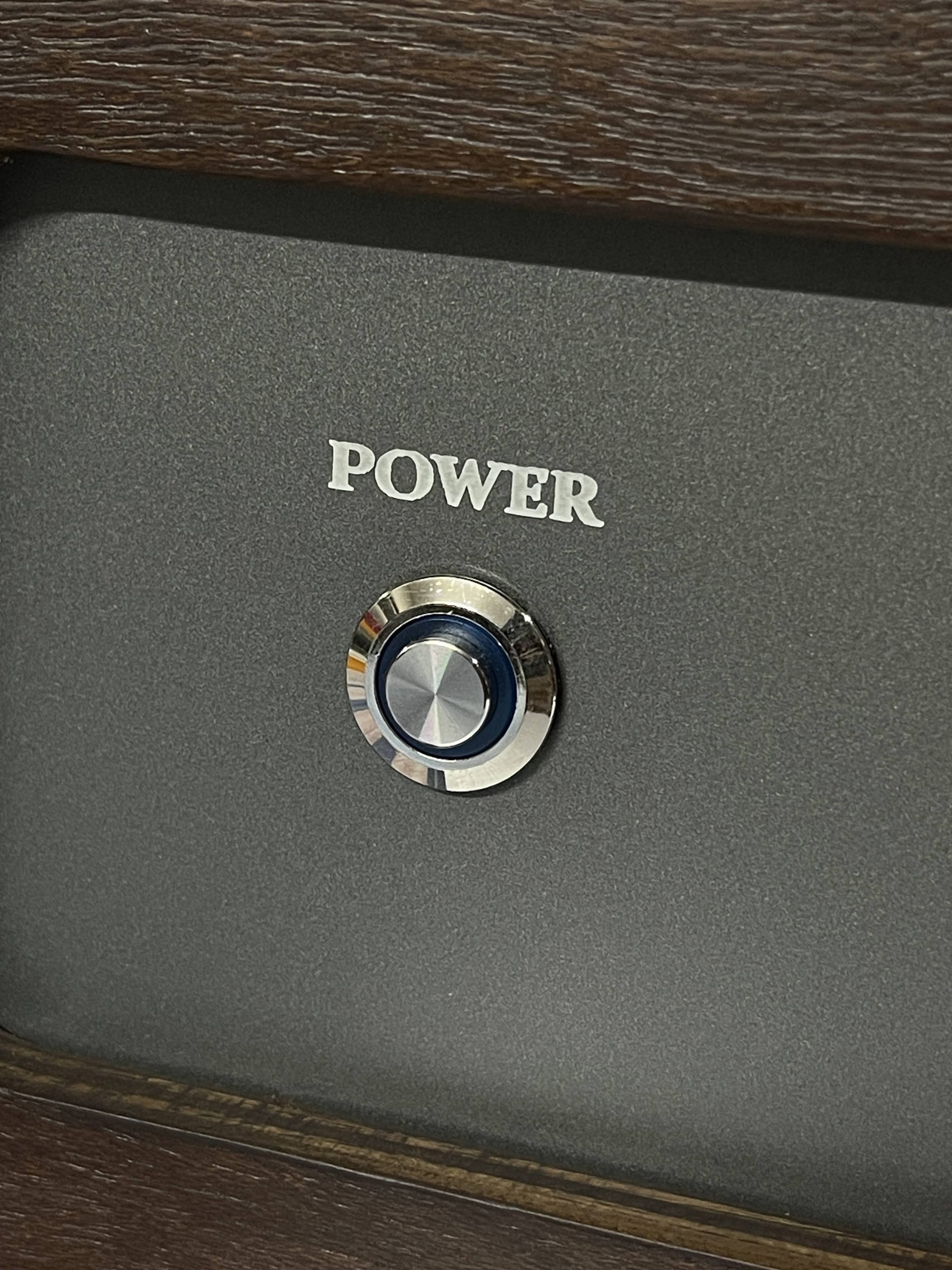

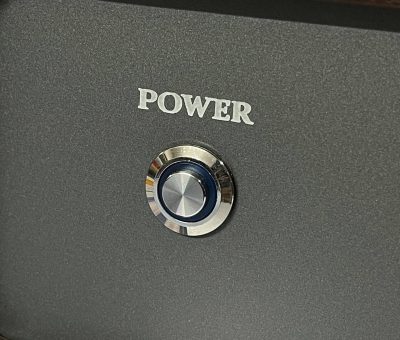

IMG_4640
AP-CH460

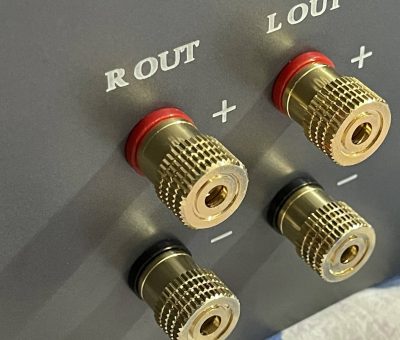

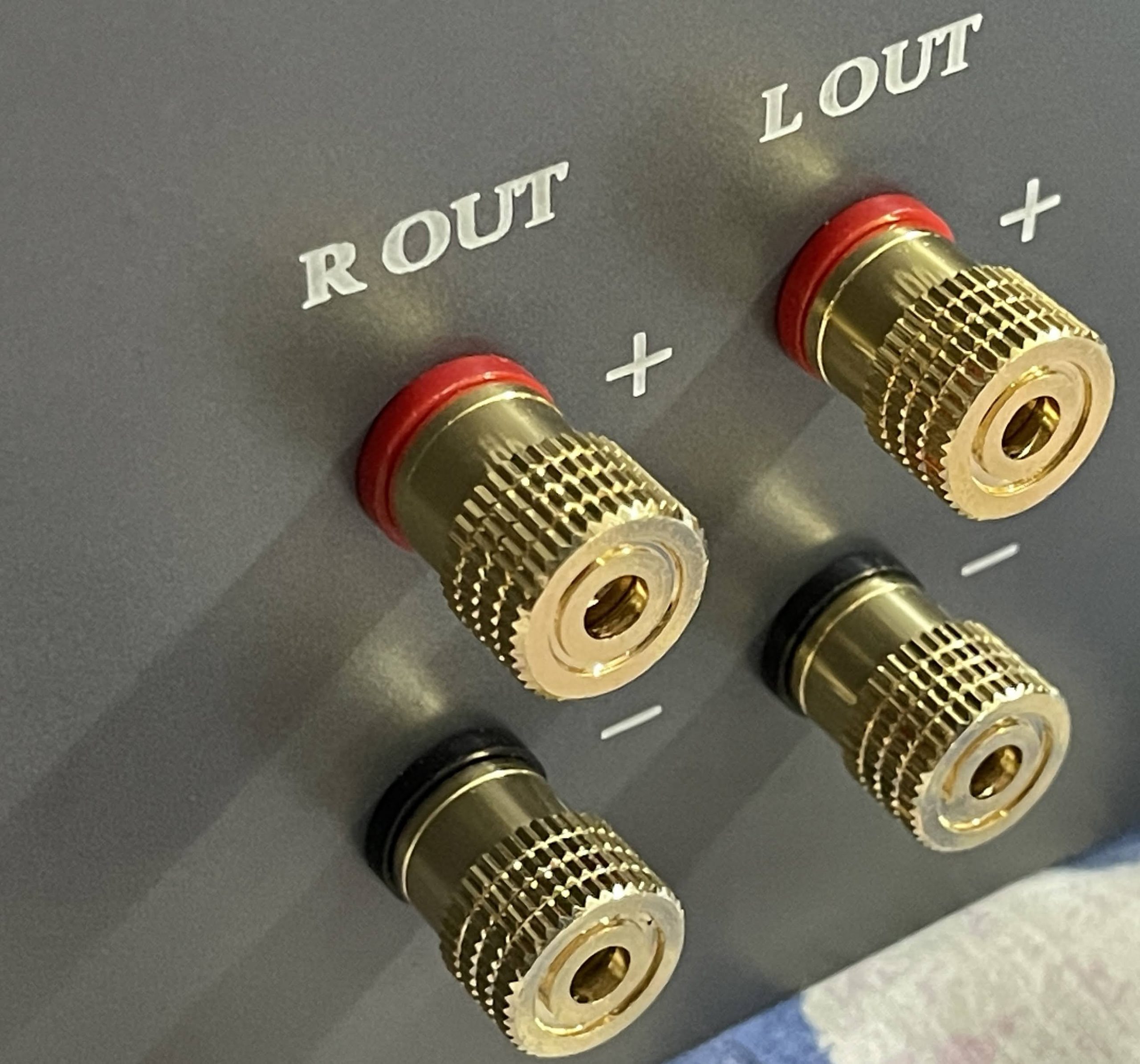

IMG_4638
AP-CH460

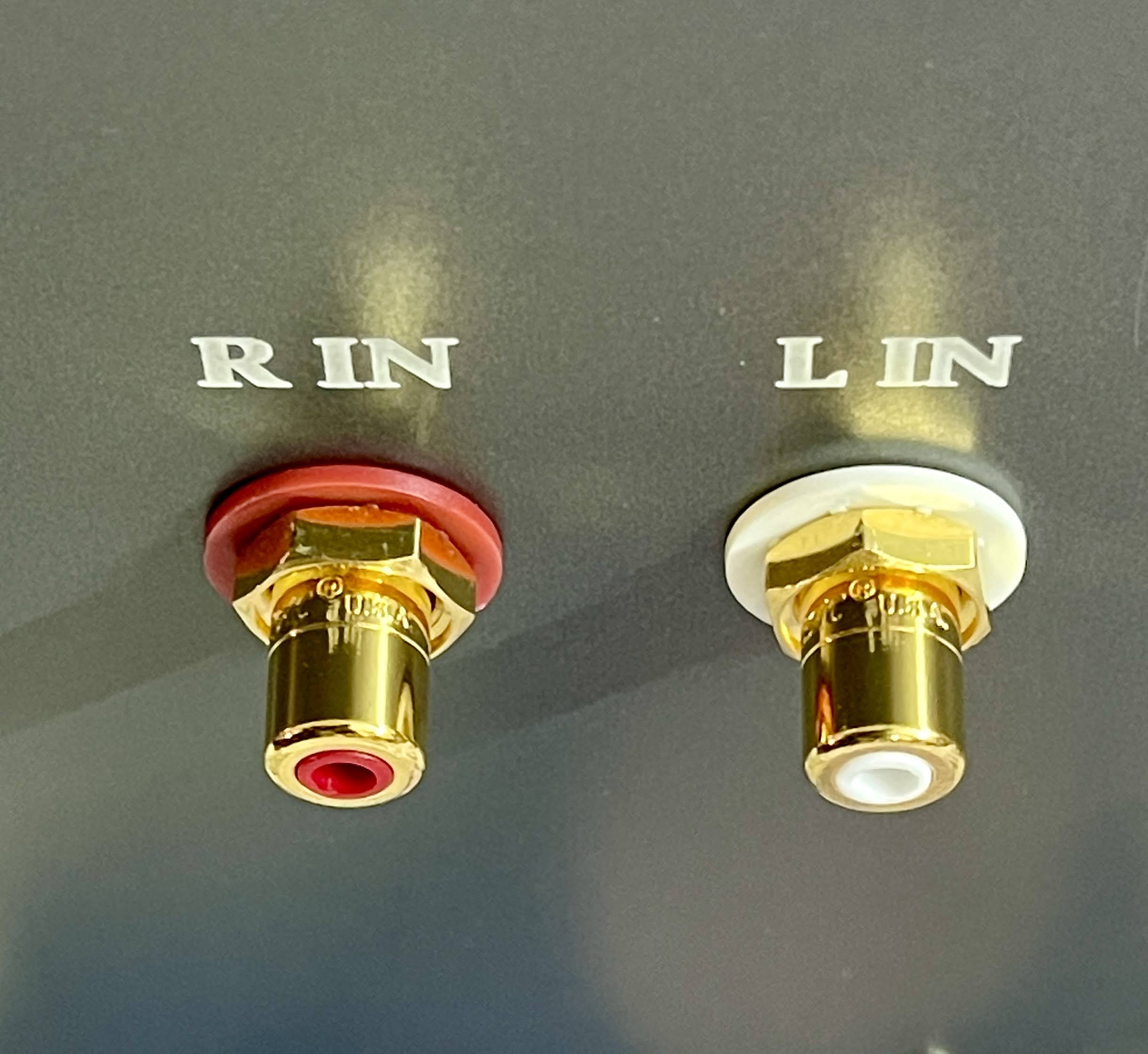

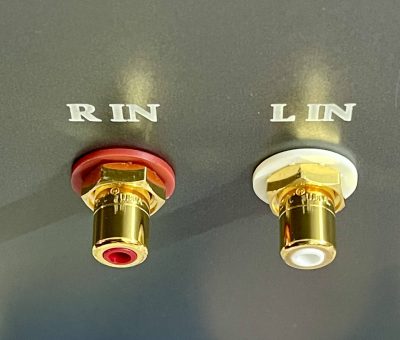

IMG_4637
AP-CH460

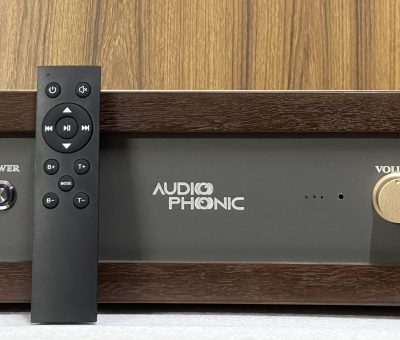

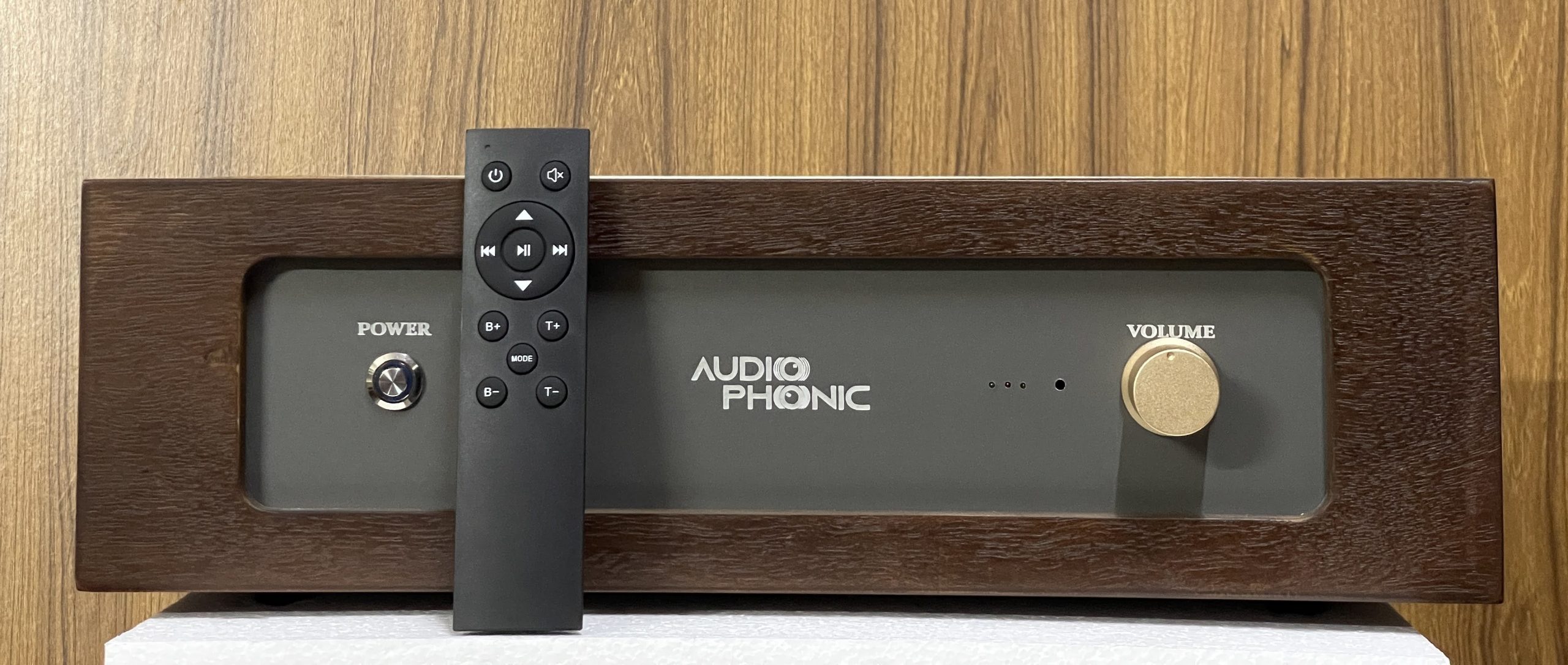

IMG_4621
AP-CH460

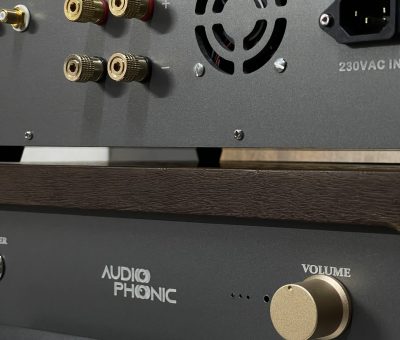

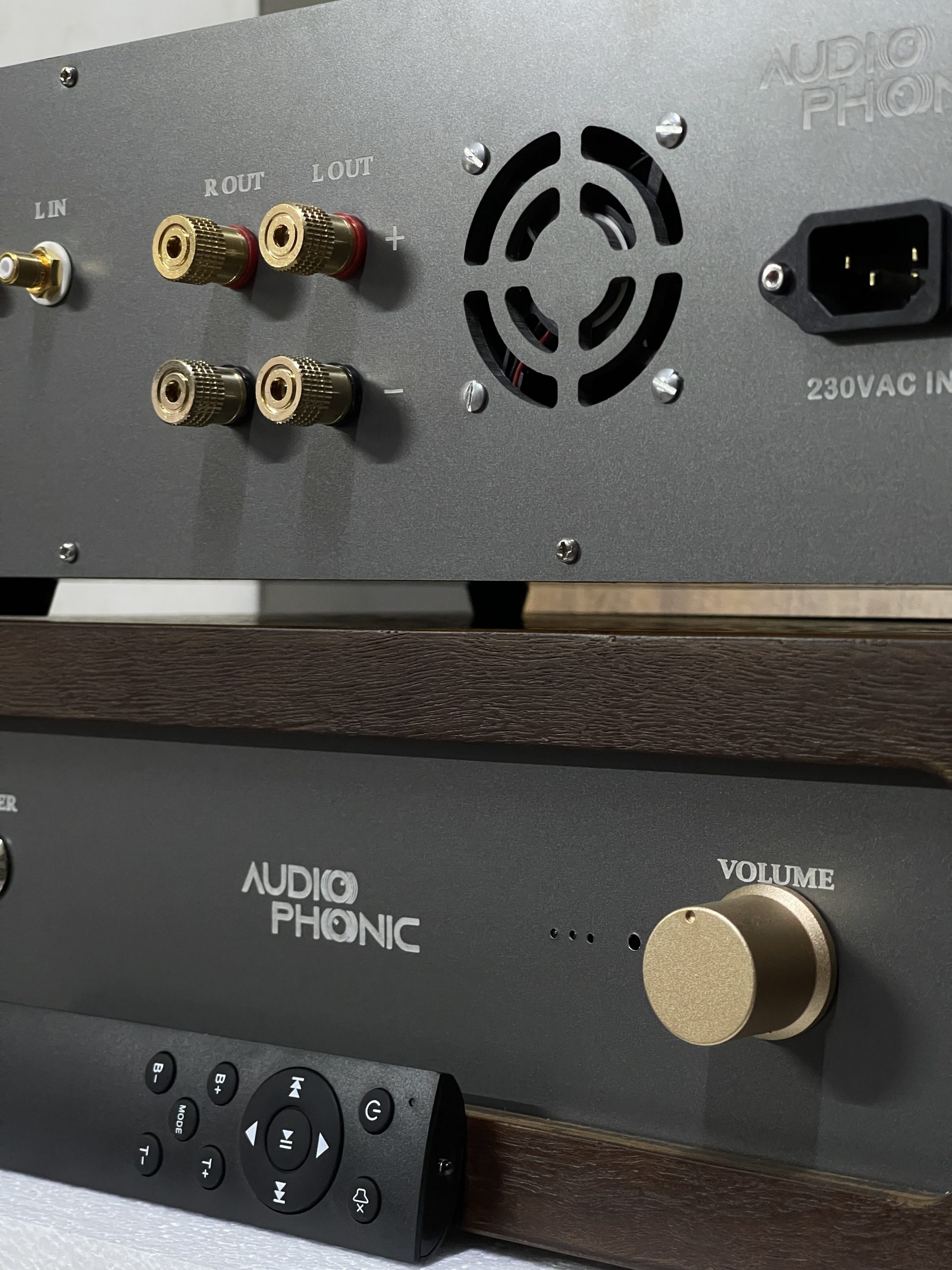

IMG_4633
