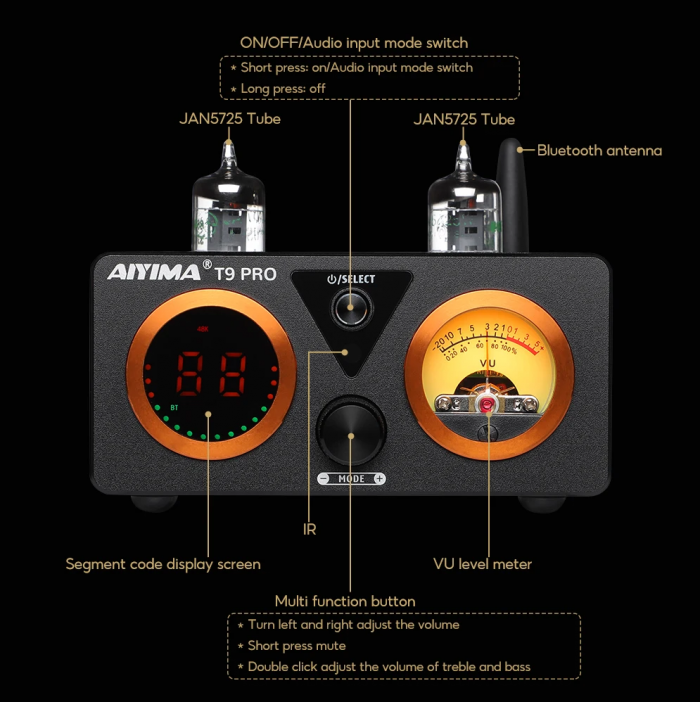

T9 PRO TPA3250 power amplifier 100Wx2



Chipset: TPA3250+Jan5725+QCC3040+ES9018K2M+SA9123L+OPA1656+NJW1194



PC-USB sampling rate: 24bit/192khz, 16bit/192khz, 24bit/96khz



PC-USB operating system: Windows XP / Win10/11/ Max OS/MAC/Linux



Bluetooth/optical fiber/coaxial sampling rate: 24bit44.1khz/24bit192khz/24bit192khz



Bluetooth chip: QCC3040, Bluetooth 5.2, support SBC，AAC，aptx ，aptx-ll,aptx-HD

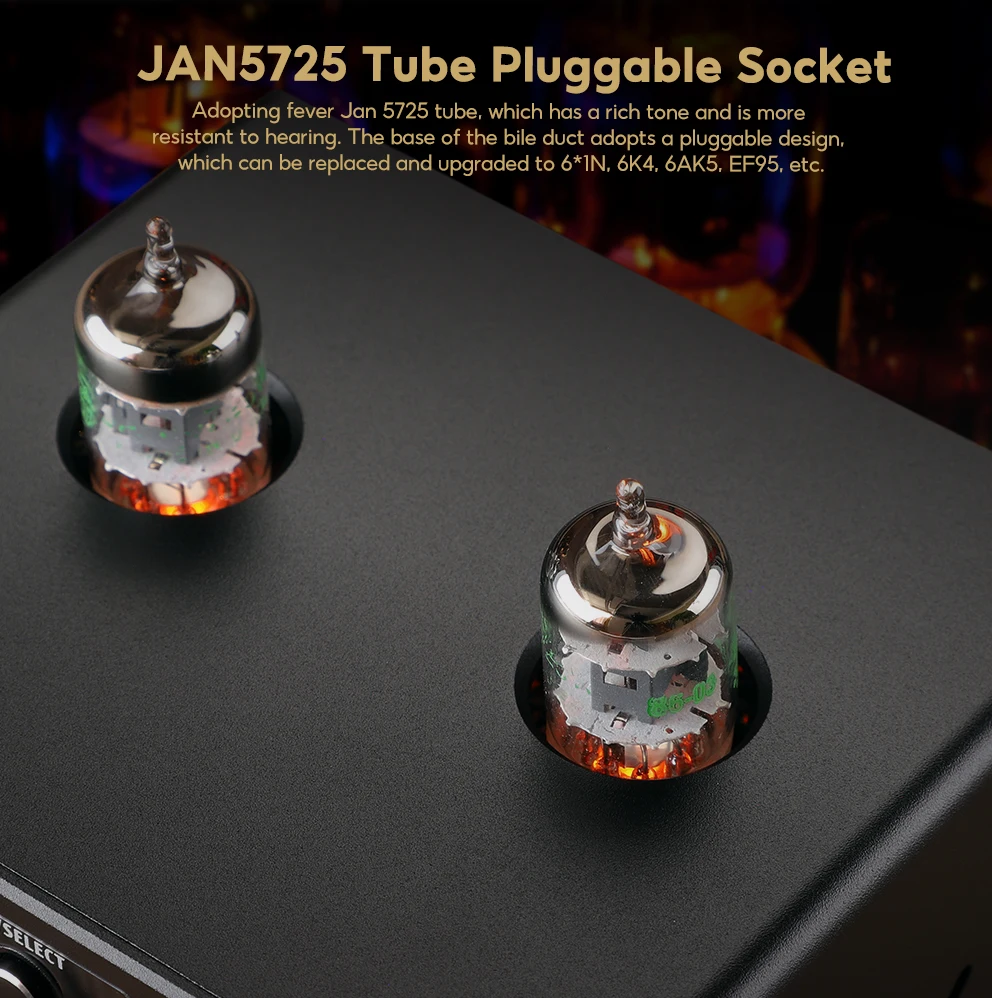

Tube model: JAN5725 or 5725 or 6K4



The pipes that can be replaced are: 6AK1П, 6AK5, 6K4, EF95.6J1, GE5654, etc.



Speaker impedance: 4-8Ω

Output power: 100W*2 (4 Ohm load)

AUX output amplitude: 2V

Signal-to-noise ratio: ≥102dB

Input sensitivity: 1.4V

Frequency response: 20-20kHz (±1.5dB)

Total harmonic distortion: 0.03% (1kHz 1w)

Input mode: RCA/Bluetooth/PC-usb/optical fiber/coaxial

Supported devices: mobile phones, tablets, computers, MP3, TVs, etc.

Output mode: passive speaker, active speaker, post-stage power amplifier

AUX OUT: support amplifier or active subwoofer( as output connect to next amplifier without volume control)

Working power supply: DC18V-32V, 3A or more

Product size: 116*100*54mm

Packing size: 295*205*85mm

Product net weight: 617g
