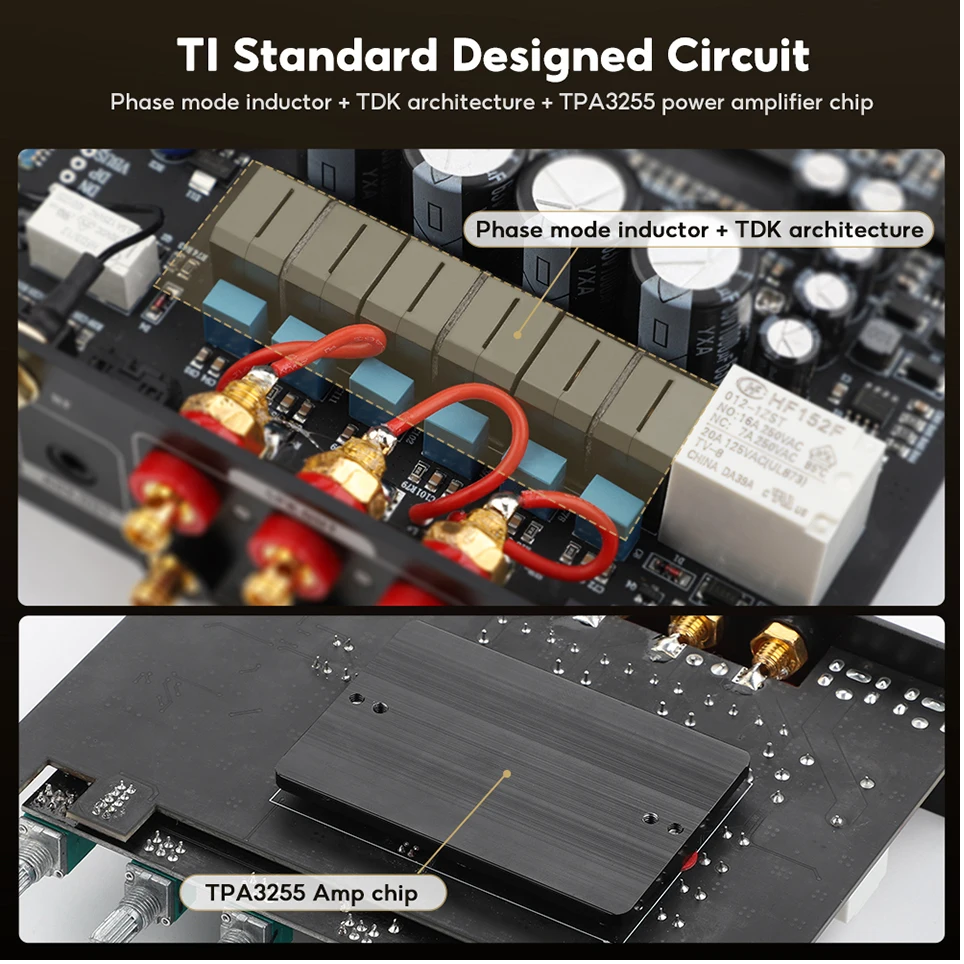

Chipset: TPA3255+QCC3040+NE5532
Bluetooth chip: QCC3040 Bluetooth 5.2 support: AAC,SBC,aptX,aptX-LL,APTX-HD
Op-amp Chip: NE5532*6 (non-replaceable)
Distortion:0.01%
Signal-to-noise ratio:≥108db
Frequency Response:20-20KHz (±1db)
Input Sensitivity:2v
AUX Rated Output Level: 1.4v
Left and right channel treble and bass adjustment range: ±6db
Subwoofer adjustment range: ±4db
Subwoofer cut-off frequency: 50-220HZ
Speaker impedance: 4-8Ω
Output Power: Left/Right 300w*2@48v@4Ω 10%, Bass 300w@48v@4Ω 10%

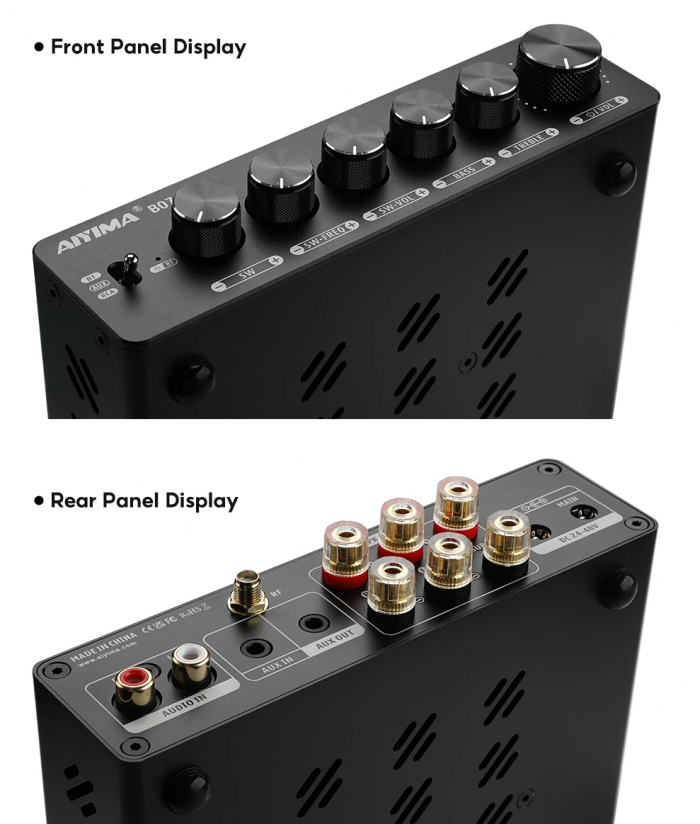

Input mode: Bluetooth / RCA
Support devices: cell phone, tablet, computer, MP3, TV, etc.

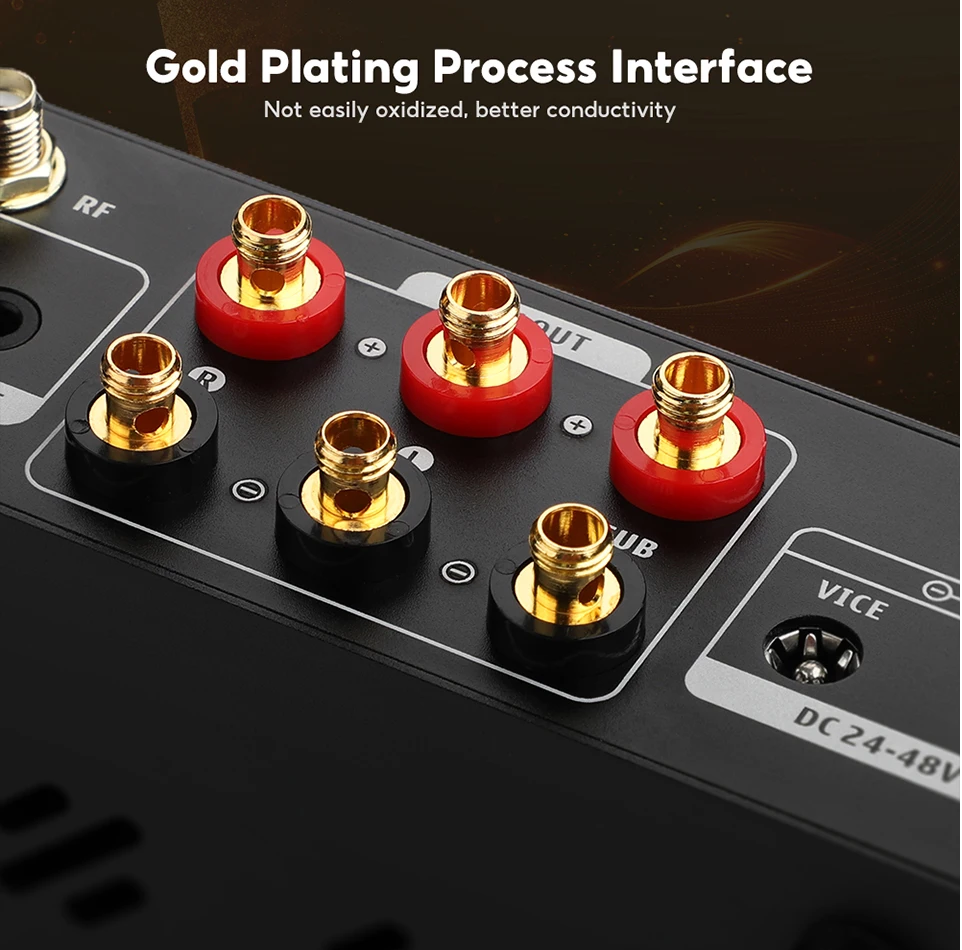

Output mode: passive speaker + passive subwoofer + active subwoofer
Working power supply: DC24-48V (auxiliary power supply 24v-48v)
The voltage of the auxiliary power supply needs to be the same as the main power supply, and the current can be different.
Product size: 154*124*42mm
Packing size: 305*233*70mm
Product net weight: 800g
Packing（with Product）weight:1030g
Power supply: DC24-48V (auxiliary power supply 24v-48v)
Note :The primary and secondary power supplies need the same voltage
Price: BDT-18,500.00
